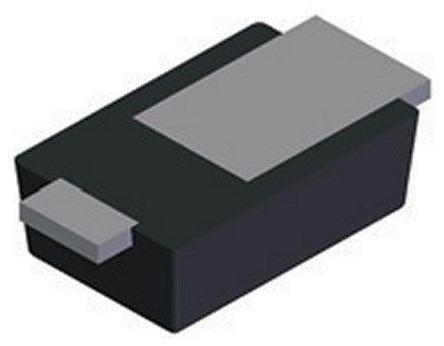

Diodes Inc Zener Diode, 12V 5% 500 mW SMT 2-Pin PowerDI 323

Enrgtech Part No: ET14058527
|
Manufacturer Part No:
PD3Z284C12-7
|
Manufacturer: DiodesZetex

PD3Z284C12-7 Diodes Inc Zener Diode, 12V 5% 500 mW SMT 2-Pin PowerDI 323

Product Information

Nominal Zener Voltage:

12V

Dimensions:

1.95 x 1.3 x 0.7mm

Mounting Type:

Surface Mount

Maximum Zener Impedance:

10Ω

Typical Voltage Temperature Coefficient:

8mV/°C

Maximum Operating Temperature:

+150 °C

Maximum Reverse Leakage Current:

100nA

Maximum Power Dissipation:

500 mW

Package Type:

PowerDI 323

Number of Elements per Chip:

Minimum Operating Temperature:

-65 °C

Zener Type:

Voltage Regulator

Checking for live stock

This is Diodes Inc Zener Diode 12V 5% 500 mW SMT 2-Pin PowerDI 323 manufactured by DiodesZetex. The manufacturer part number is PD3Z284C12-7. Its nominal Zener voltage is 12v. The given dimensions of the product include 1.95 x 1.3 x 0.7mm. The product is available in surface mount configuration. While it has 10ω of maximum Zener impedance. The product has a typical 8mv/°c voltage temperature coefficient . It has a maximum operating temperature of +150 °c. The product has a maximum 100na of reverse leakage current. Provides up to 500 mw maximum power dissipation. The package is a sort of powerdi 323. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. The Zener is a type of voltage regulator Zener with unique features. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 5ma test current.

PD3Z284C2V4 - PD3Z284C39 0.5W SURFACE MOUNT ZENER DIODE DATA SHEET(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Your Rating

Reviews

Be the first to review.

Don’t hesitate to ask questions for better clarification.

FAQs

Yes. You can also search PD3Z284C12-7 on website for other similar products.

We accept all major payment methods for all products including ET14058527. Please check your shopping cart at the time of order.

You can order DiodesZetex brand products with PD3Z284C12-7 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Zener Diodes category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Diodes Inc Zener Diode, 12V 5% 500 mW SMT 2-Pin PowerDI 323. You can also check on our website or by contacting our customer support team for further order details on Diodes Inc Zener Diode, 12V 5% 500 mW SMT 2-Pin PowerDI 323.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET14058527 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14058527.

Yes. We ship PD3Z284C12-7 Internationally to many countries around the world.
