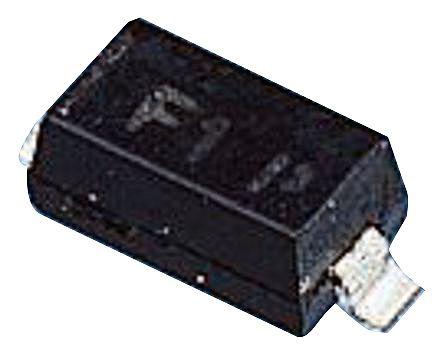

500mW 2.4V 5% Single Zener Diode SOD-123

Enrgtech Part No: ET14058510
|
Manufacturer Part No:
MMSZ5221B-7-F
|
Manufacturer: DiodesZetex

MMSZ5221B-7-F 500mW 2.4V 5% Single Zener Diode SOD-123

Product Information

Nominal Zener Voltage:

2.4V

Dimensions:

2.85 x 1.7 x 1.35mm

Mounting Type:

Surface Mount

Forward Current:

10mA

Maximum Operating Temperature:

+150 °C

Maximum Reverse Leakage Current:

100µA

Maximum Zener Impedance:

30Ω

Forward Voltage:

0.9V

Package Type:

SOD-123

Number of Elements per Chip:

Minimum Operating Temperature:

-65 °C

Maximum Power Dissipation:

500 mW

Checking for live stock

This is 500mW 2.4V 5% Single Zener Diode SOD-123 manufactured by DiodesZetex. The manufacturer part number is MMSZ5221B-7-F. Its nominal Zener voltage is 2.4v. The given dimensions of the product include 2.85 x 1.7 x 1.35mm. The product is available in surface mount configuration. It features 10ma forward current. It has a maximum operating temperature of +150 °c. The product has a maximum 100µa of reverse leakage current. While it has 30ω of maximum Zener impedance. The forward voltage is 0.9v. The package is a sort of sod-123. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. Provides up to 500 mw maximum power dissipation. The Zener is a type of general purpose Zener with unique features. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 20ma test current.

MMSZ5221B - MMSZ5259B, 500mW Surface Mount Zener Diode(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search MMSZ5221B-7-F on website for other similar products.

We accept all major payment methods for all products including ET14058510. Please check your shopping cart at the time of order.

You can order DiodesZetex brand products with MMSZ5221B-7-F directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Zener Diodes category are shipped in lowest possible time.

You will get a confirmation email regarding your order of 500mW 2.4V 5% Single Zener Diode SOD-123. You can also check on our website or by contacting our customer support team for further order details on 500mW 2.4V 5% Single Zener Diode SOD-123.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET14058510 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14058510.

Yes. We ship MMSZ5221B-7-F Internationally to many countries around the world.
