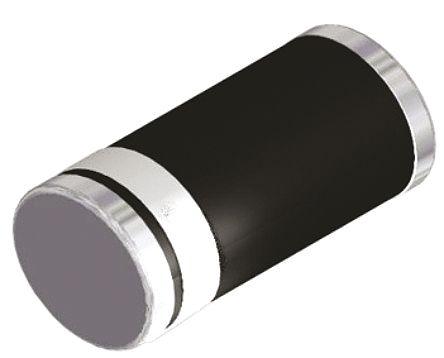

Vishay Zener Diode, 20V 5% 1 W SMT 2-Pin DO-213AB

ZM4747A-GS08 Vishay Zener Diode, 20V 5% 1 W SMT 2-Pin DO-213AB
Vishay

Product Information

Automotive Standard:
AEC-Q101
Diameter:
2.6mm
Dimensions:
5.2 x 2.6mm
Mounting Type:
Surface Mount
Nominal Zener Voltage:
20V
Maximum Operating Temperature:
+175 °C
Maximum Reverse Leakage Current:
5µA
Maximum Zener Impedance:
22Ω
Length:
5.2mm
Zener Type:
General Purpose
Number of Elements per Chip:
1
Maximum Power Dissipation:
1 W
Package Type:
DO-213AB
Zener Voltage Tolerance:
5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
12.5mA
RoHs Compliant
Checking for live stock

This is Zener Diode 20V 5% 1 W SMT 2-Pin DO-213AB manufactured by Vishay. The manufacturer part number is ZM4747A-GS08. The product complies with automotive standard - aec-q101. Its diameter is 2.6mm. The given dimensions of the product include 5.2 x 2.6mm. The product is available in surface mount configuration. Its nominal Zener voltage is 20v. It has a maximum operating temperature of +175 °c. The product has a maximum 5µa of reverse leakage current. While it has 22ω of maximum Zener impedance. Its accurate length is 5.2mm. The Zener is a type of general purpose Zener with unique features. It consists of 1 elements per chip. Provides up to 1 w maximum power dissipation. The package is a sort of do-213ab. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 12.5ma test current.

pdf icon
ZM4728A to ZM4764A, Zener Diodes(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
