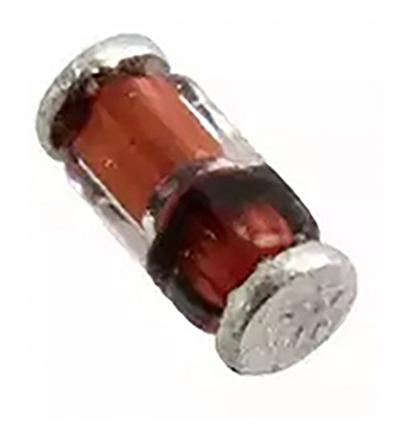

Vishay Zener Diode, 12V 5% 500 mW SMT 2-Pin SOD-80

Enrgtech Part No: ET14031886
|
Manufacturer Part No:
TZQ5242B-GS18
|
Manufacturer: Vishay

TZQ5242B-GS18 Vishay Zener Diode, 12V 5% 500 mW SMT 2-Pin SOD-80

Product Information

Nominal Zener Voltage:

12V

Dimensions:

1.6 (Dia.) x 3.7mm

Mounting Type:

Surface Mount

Forward Current:

200mA

Typical Voltage Temperature Coefficient:

<+0.077%/K

Maximum Operating Temperature:

+175 °C

Maximum Reverse Leakage Current:

<1µA

Maximum Zener Impedance:

<600Ω

Forward Voltage:

1.5V

Package Type:

SOD-80

Number of Elements per Chip:

Maximum Power Dissipation:

500 mW

Checking for live stock

This is Zener Diode 12V 5% 500 mW SMT 2-Pin SOD-80 manufactured by Vishay. The manufacturer part number is TZQ5242B-GS18. Its nominal Zener voltage is 12v. The given dimensions of the product include 1.6 (dia.) x 3.7mm. The product is available in surface mount configuration. It features 200ma forward current. The product has a typical <+0.077%/k voltage temperature coefficient . It has a maximum operating temperature of +175 °c. The product has a maximum <1µa of reverse leakage current. While it has <600ω of maximum Zener impedance. The forward voltage is 1.5v. The package is a sort of sod-80. It consists of 1 elements per chip. Provides up to 500 mw maximum power dissipation. The Zener is a type of general purpose Zener with unique features. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 20ma test current.

TZQ5242B-GS18 Data Sheet(Technical Reference)
