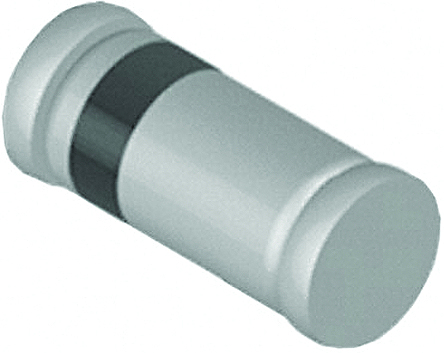

Vishay Zener Diode, 9.1V 6% 500 mW SMT 2-Pin SOD-80

BZT55C9V1-GS08 Vishay Zener Diode, 9.1V 6% 500 mW SMT 2-Pin SOD-80
Vishay

Product Information

Nominal Zener Voltage:
9.1V
Dimensions:
3.7 x 1.6 x 1.6mm
Mounting Type:
Surface Mount
Maximum Zener Impedance:
10Ω
Typical Voltage Temperature Coefficient:
0.09%/K
Maximum Operating Temperature:
+175 °C
Maximum Reverse Leakage Current:
2µA
Maximum Power Dissipation:
500 mW
Package Type:
SOD-80
Number of Elements per Chip:
1
Zener Type:
Voltage Regulator
Zener Voltage Tolerance:
6%
Diode Configuration:
Single
Pin Count:
2
Test Current:
5mA
RoHs Compliant
Checking for live stock

This is Zener Diode 9.1V 6% 500 mW SMT 2-Pin SOD-80 manufactured by Vishay. The manufacturer part number is BZT55C9V1-GS08. Its nominal Zener voltage is 9.1v. The given dimensions of the product include 3.7 x 1.6 x 1.6mm. The product is available in surface mount configuration. While it has 10ω of maximum Zener impedance. The product has a typical 0.09%/k voltage temperature coefficient . It has a maximum operating temperature of +175 °c. The product has a maximum 2µa of reverse leakage current. Provides up to 500 mw maximum power dissipation. The package is a sort of sod-80. It consists of 1 elements per chip. The Zener is a type of voltage regulator Zener with unique features. It has 6% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 5ma test current.

pdf icon
BZT55-Series, Small Signal Zener Diodes(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search BZT55C9V1-GS08 on website for other similar products.
We accept all major payment methods for all products including ET14030443. Please check your shopping cart at the time of order.
You can order Vishay brand products with BZT55C9V1-GS08 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Zener Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay Zener Diode, 9.1V 6% 500 mW SMT 2-Pin SOD-80. You can also check on our website or by contacting our customer support team for further order details on Vishay Zener Diode, 9.1V 6% 500 mW SMT 2-Pin SOD-80.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14030443 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14030443.
Yes. We ship BZT55C9V1-GS08 Internationally to many countries around the world.
