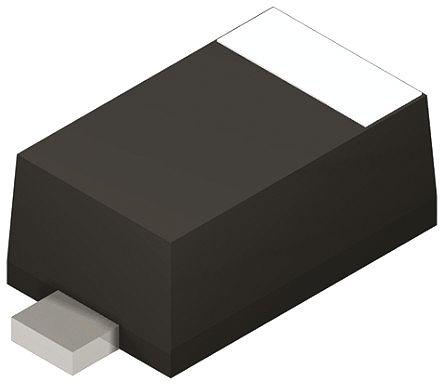

NXP Zener Diode, 5.6V 2.5% 1 W SMT 2-Pin SOD-123F

NZH5V6B NXP Zener Diode, 5.6V 2.5% 1 W SMT 2-Pin SOD-123F
Nexperia

Product Information

Nominal Zener Voltage:
5.6V
Dimensions:
2.7 x 1.7 x 1.2mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
1 W
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
5µA
Height:
1.2mm
Width:
1.7mm
Length:
2.7mm
Zener Type:
General Purpose
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Package Type:
SOD-123F
Zener Voltage Tolerance:
2.5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
20mA
RoHs Compliant
Checking for live stock

This is NXP Zener Diode 5.6V 2.5% 1 W SMT 2-Pin SOD-123F manufactured by Nexperia. The manufacturer part number is NZH5V6B. Its nominal Zener voltage is 5.6v. The given dimensions of the product include 2.7 x 1.7 x 1.2mm. The product is available in surface mount configuration. Provides up to 1 w maximum power dissipation. It has a maximum operating temperature of +150 °c. The product has a maximum 5µa of reverse leakage current. In addition, the height is 1.2mm. Furthermore, the product is 1.7mm wide. Its accurate length is 2.7mm. The Zener is a type of general purpose Zener with unique features. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. The package is a sort of sod-123f. It has 2.5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 20ma test current.

pdf icon
NZH Series Single Zener Diodes Data Sheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search NZH5V6B on website for other similar products.
We accept all major payment methods for all products including ET14005453. Please check your shopping cart at the time of order.
You can order Nexperia brand products with NZH5V6B directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Zener Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NXP Zener Diode, 5.6V 2.5% 1 W SMT 2-Pin SOD-123F. You can also check on our website or by contacting our customer support team for further order details on NXP Zener Diode, 5.6V 2.5% 1 W SMT 2-Pin SOD-123F.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14005453 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14005453.
Yes. We ship NZH5V6B Internationally to many countries around the world.
