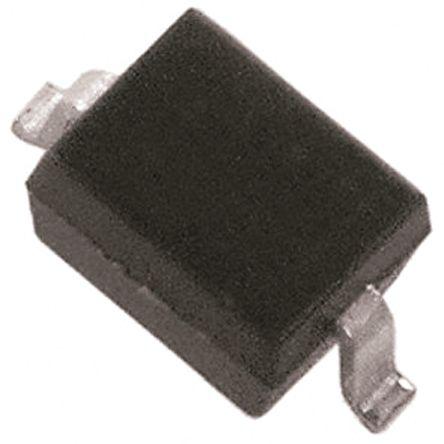

Diodes Inc Zener Diode, 12V 5% 200 mW SMT 2-Pin SOD-323

MMSZ5242BS-7-F Diodes Inc Zener Diode, 12V 5% 200 mW SMT 2-Pin SOD-323
DiodesZetex

Product Information

Nominal Zener Voltage:
12V
Dimensions:
1.8 x 1.4 x 1.1mm
Mounting Type:
Surface Mount
Maximum Zener Impedance:
30Ω
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
1µA
Maximum Power Dissipation:
200 mW
Height:
1.1mm
Width:
1.4mm
Length:
1.8mm
Zener Type:
General Purpose
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Package Type:
SOD-323
Zener Voltage Tolerance:
5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
20mA
RoHs Compliant
Checking for live stock

This is Diodes Inc Zener Diode 12V 5% 200 mW SMT 2-Pin SOD-323 manufactured by DiodesZetex. The manufacturer part number is MMSZ5242BS-7-F. Its nominal Zener voltage is 12v. The given dimensions of the product include 1.8 x 1.4 x 1.1mm. The product is available in surface mount configuration. While it has 30ω of maximum Zener impedance. It has a maximum operating temperature of +150 °c. The product has a maximum 1µa of reverse leakage current. Provides up to 200 mw maximum power dissipation. In addition, the height is 1.1mm. Furthermore, the product is 1.4mm wide. Its accurate length is 1.8mm. The Zener is a type of general purpose Zener with unique features. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. The package is a sort of sod-323. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 20ma test current.

pdf icon
Surface Mount Zener Diode Datasheet(Technical Reference)
