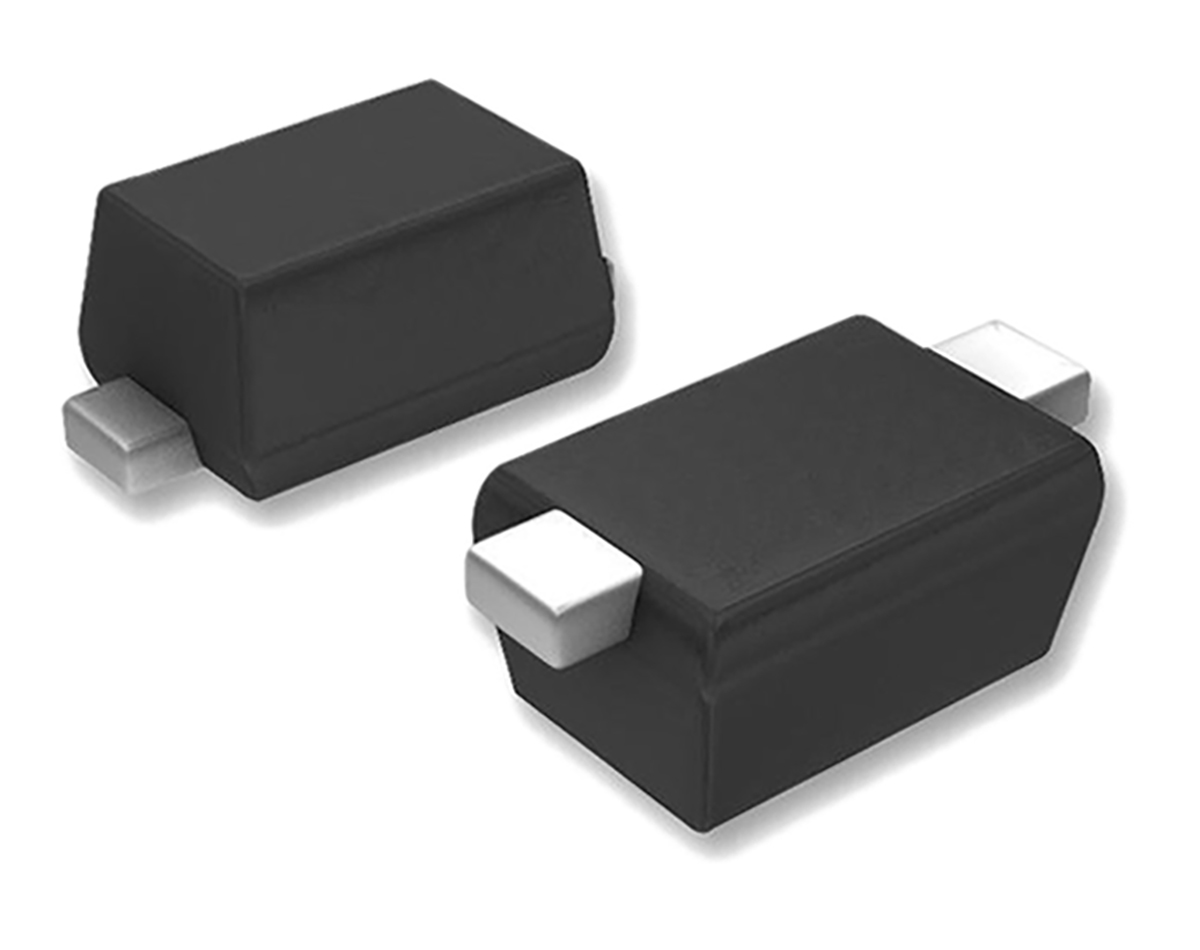

Diodes Inc Zener Diode, 3.6V 6% 300 mW SMT 2-Pin SOD-523

BZT52C3V6T-7 Diodes Inc Zener Diode, 3.6V 6% 300 mW SMT 2-Pin SOD-523
DiodesZetex

Product Information

Nominal Zener Voltage:
3.6V
Dimensions:
1.3 x 0.9 x 0.65mm
Mounting Type:
Surface Mount
Maximum Zener Impedance:
90Ω
Typical Voltage Temperature Coefficient:
-1.75mV/°C
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
5µA
Maximum Power Dissipation:
300 mW
Package Type:
SOD-523
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Zener Type:
Voltage Regulator
Zener Voltage Tolerance:
6%
Diode Configuration:
Single
Pin Count:
2
Test Current:
5mA
RoHs Compliant
Checking for live stock

This is Diodes Inc Zener Diode 3.6V 6% 300 mW SMT 2-Pin SOD-523 manufactured by DiodesZetex. The manufacturer part number is BZT52C3V6T-7. Its nominal Zener voltage is 3.6v. The given dimensions of the product include 1.3 x 0.9 x 0.65mm. The product is available in surface mount configuration. While it has 90ω of maximum Zener impedance. The product has a typical -1.75mv/°c voltage temperature coefficient . It has a maximum operating temperature of +150 °c. The product has a maximum 5µa of reverse leakage current. Provides up to 300 mw maximum power dissipation. The package is a sort of sod-523. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. The Zener is a type of voltage regulator Zener with unique features. It has 6% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 5ma test current.

pdf icon
BZT52C2V0T - BZT52C24T SURFACE MOUNT ZENER DIODE DATA SHEET(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
