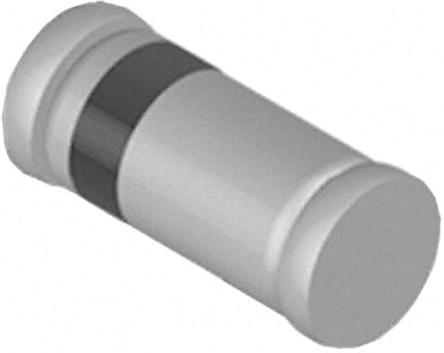

Vishay Zener Diode, 5.6V 5% 500 mW SMT 2-Pin SOD-80

TZQ5232B-GS18 Vishay Zener Diode, 5.6V 5% 500 mW SMT 2-Pin SOD-80
Vishay

Product Information

Nominal Zener Voltage:
5.6V
Dimensions:
1.6 (Dia.) x 3.7mm
Mounting Type:
Surface Mount
Forward Current:
200mA
Typical Voltage Temperature Coefficient:
<+0.038%/K
Maximum Operating Temperature:
+175 °C
Maximum Reverse Leakage Current:
<5µA
Maximum Zener Impedance:
11Ω
Forward Voltage:
1.5V
Package Type:
SOD-80
Number of Elements per Chip:
1
Maximum Power Dissipation:
500 mW
Zener Type:
General Purpose
Zener Voltage Tolerance:
5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
20mA
RoHs Compliant
Checking for live stock

This is Zener Diode 5.6V 5% 500 mW SMT 2-Pin SOD-80 manufactured by Vishay. The manufacturer part number is TZQ5232B-GS18. Its nominal Zener voltage is 5.6v. The given dimensions of the product include 1.6 (dia.) x 3.7mm. The product is available in surface mount configuration. It features 200ma forward current. The product has a typical <+0.038%/k voltage temperature coefficient . It has a maximum operating temperature of +175 °c. The product has a maximum <5µa of reverse leakage current. While it has 11ω of maximum Zener impedance. The forward voltage is 1.5v. The package is a sort of sod-80. It consists of 1 elements per chip. Provides up to 500 mw maximum power dissipation. The Zener is a type of general purpose Zener with unique features. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 20ma test current.

pdf icon
TZQ5232B-GS18 Data Sheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search TZQ5232B-GS18 on website for other similar products.
We accept all major payment methods for all products including ET13977632. Please check your shopping cart at the time of order.
You can order Vishay brand products with TZQ5232B-GS18 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Zener Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay Zener Diode, 5.6V 5% 500 mW SMT 2-Pin SOD-80. You can also check on our website or by contacting our customer support team for further order details on Vishay Zener Diode, 5.6V 5% 500 mW SMT 2-Pin SOD-80.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13977632 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search&nbsp;"Vishay" products on our website by using Enrgtech's Unique&nbsp;Manufacturing Part Number ET13977632.
Yes. We ship TZQ5232B-GS18 Internationally to many countries around the world.
