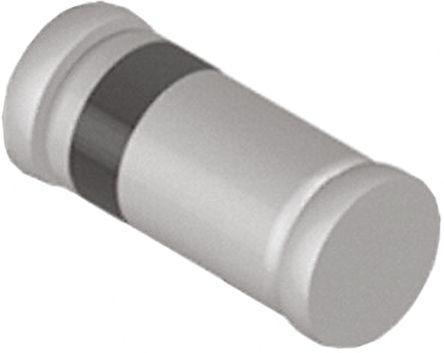

Vishay Zener Diode, 3V 5% 500 mW SMT 2-Pin SOD-80

TZM5225B-GS08 Vishay Zener Diode, 3V 5% 500 mW SMT 2-Pin SOD-80
Vishay

Product Information

Nominal Zener Voltage:
3V
Dimensions:
3.7 x 1.6 x 1.6mm
Mounting Type:
Surface Mount
Maximum Zener Impedance:
29Ω
Typical Voltage Temperature Coefficient:
0.075%/K
Maximum Operating Temperature:
+175 °C
Maximum Reverse Leakage Current:
50µA
Maximum Power Dissipation:
500 mW
Height:
1.6mm
Width:
1.6mm
Length:
3.7mm
Zener Type:
Voltage Regulator
Number of Elements per Chip:
1
Package Type:
SOD-80
Zener Voltage Tolerance:
5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
20mA
RoHs Compliant
Checking for live stock

This is Zener Diode 3V 5% 500 mW SMT 2-Pin SOD-80 manufactured by Vishay. The manufacturer part number is TZM5225B-GS08. Its nominal Zener voltage is 3v. The given dimensions of the product include 3.7 x 1.6 x 1.6mm. The product is available in surface mount configuration. While it has 29ω of maximum Zener impedance. The product has a typical 0.075%/k voltage temperature coefficient . It has a maximum operating temperature of +175 °c. The product has a maximum 50µa of reverse leakage current. Provides up to 500 mw maximum power dissipation. In addition, the height is 1.6mm. Furthermore, the product is 1.6mm wide. Its accurate length is 3.7mm. The Zener is a type of voltage regulator Zener with unique features. It consists of 1 elements per chip. The package is a sort of sod-80. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 20ma test current.

pdf icon
TZM5221B to TZM5267B, Small Signal Zener Diodes(Technical Reference)
