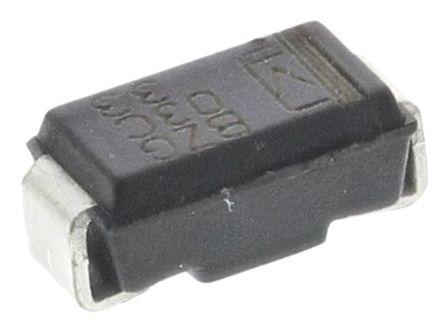

Vishay Zener Diode, 33V 6% 3 W SMT 2-Pin DO-214AC

BZG03C33TR Vishay Zener Diode, 33V 6% 3 W SMT 2-Pin DO-214AC
BZG03C33TR
Vishay

Product Information

Nominal Zener Voltage:
33V
Dimensions:
4.5 x 2.8 x 2.2mm
Mounting Type:
Surface Mount
Maximum Zener Impedance:
15Ω
Typical Voltage Temperature Coefficient:
0.06 %/°C, 0.11 %/°C
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
1µA
Maximum Power Dissipation:
3 W
Height:
2.2mm
Width:
2.8mm
Length:
4.5mm
Zener Type:
Voltage Regulator
Number of Elements per Chip:
1
Package Type:
DO-214AC (SMA)
Zener Voltage Tolerance:
6%
Diode Configuration:
Single
Pin Count:
2
Test Current:
25mA
RoHs Compliant
Checking for live stock

This is Zener Diode 33V 6% 3 W SMT 2-Pin DO-214AC manufactured by Vishay. The manufacturer part number is BZG03C33TR. Its nominal Zener voltage is 33v. The given dimensions of the product include 4.5 x 2.8 x 2.2mm. The product is available in surface mount configuration. While it has 15ω of maximum Zener impedance. The product has a typical 0.06 %/°c, 0.11 %/°c voltage temperature coefficient . It has a maximum operating temperature of +150 °c. The product has a maximum 1µa of reverse leakage current. Provides up to 3 w maximum power dissipation. In addition, the height is 2.2mm. Furthermore, the product is 2.8mm wide. Its accurate length is 4.5mm. The Zener is a type of voltage regulator Zener with unique features. It consists of 1 elements per chip. The package is a sort of do-214ac (sma). It has 6% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 25ma test current.
