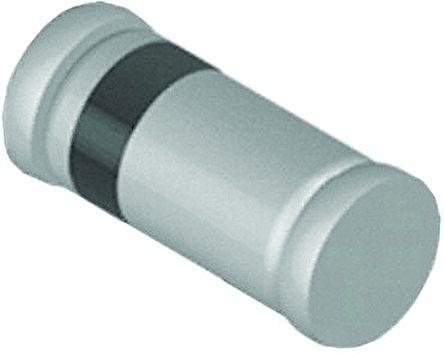

Vishay Zener Diode, 3.9V 5% 500 mW SMT 2-Pin SOD-80

TZS4686-GS08 Vishay Zener Diode, 3.9V 5% 500 mW SMT 2-Pin SOD-80
Vishay

Product Information

Nominal Zener Voltage:
3.9V
Dimensions:
3.7 x 1.6 x 1.6mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
500 mW
Maximum Operating Temperature:
+175 °C
Maximum Reverse Leakage Current:
5µA
Height:
1.6mm
Width:
1.6mm
Length:
3.7mm
Zener Type:
Voltage Regulator
Number of Elements per Chip:
1
Package Type:
SOD-80
Zener Voltage Tolerance:
5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
0.05mA
RoHs Compliant
Checking for live stock

This is Zener Diode 3.9V 5% 500 mW SMT 2-Pin SOD-80 manufactured by Vishay. The manufacturer part number is TZS4686-GS08. Its nominal Zener voltage is 3.9v. The given dimensions of the product include 3.7 x 1.6 x 1.6mm. The product is available in surface mount configuration. Provides up to 500 mw maximum power dissipation. It has a maximum operating temperature of +175 °c. The product has a maximum 5µa of reverse leakage current. In addition, the height is 1.6mm. Furthermore, the product is 1.6mm wide. Its accurate length is 3.7mm. The Zener is a type of voltage regulator Zener with unique features. It consists of 1 elements per chip. The package is a sort of sod-80. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 0.05ma test current.

pdf icon
TZS4678 to TZS4717, Small Signal Zener Diodes(Technical Reference)
