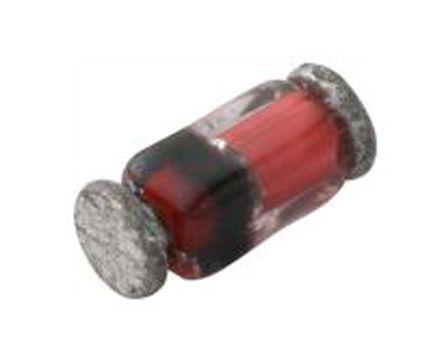

Vishay Zener Diode, 18V 5% 500 mW SMT 2-Pin SOD-80

TZQ5248B-GS18 Vishay Zener Diode, 18V 5% 500 mW SMT 2-Pin SOD-80
TZQ5248B-GS18
TZQ5248B-GS18
ET13923258
ET13923258
Vishay

Product Information

Diameter:
1.6mm
Dimensions:
1.6 x 3.7mm
Mounting Type:
Surface Mount
Forward Current:
200mA
Typical Voltage Temperature Coefficient:
<+0.085%/K
Maximum Operating Temperature:
+175 °C
Nominal Zener Voltage:
18V
Maximum Zener Impedance:
<600Ω
Forward Voltage:
1.5V
Power Dissipation:
500mW
Length:
3.7mm
Zener Type:
General Purpose
Number of Elements per Chip:
1
Maximum Reverse Leakage Current:
<100nA
Maximum Power Dissipation:
500 mW
Package Type:
SOD-80
Zener Voltage Tolerance:
5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
7mA
RoHs Compliant
Checking for live stock

This is Zener Diode 18V 5% 500 mW SMT 2-Pin SOD-80 manufactured by Vishay. The manufacturer part number is TZQ5248B-GS18. Its diameter is 1.6mm. The given dimensions of the product include 1.6 x 3.7mm. The product is available in surface mount configuration. It features 200ma forward current. The product has a typical <+0.085%/k voltage temperature coefficient . It has a maximum operating temperature of +175 °c. Its nominal Zener voltage is 18v. While it has <600ω of maximum Zener impedance. The forward voltage is 1.5v. It has about 500mw power dissipation . Its accurate length is 3.7mm. The Zener is a type of general purpose Zener with unique features. It consists of 1 elements per chip. The product has a maximum <100na of reverse leakage current. Provides up to 500 mw maximum power dissipation. The package is a sort of sod-80. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 7ma test current.

pdf icon
TZQ5248B-GS18 Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
