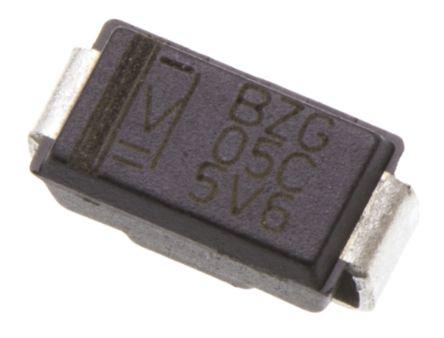

Vishay Zener Diode, 5.6V 7% 3 W SMT 2-Pin DO-214AC

BZG05C5V6-E3-TR Vishay Zener Diode, 5.6V 7% 3 W SMT 2-Pin DO-214AC
BZG05C5V6-E3-TR
Vishay

Product Information

Nominal Zener Voltage:
5.6V
Dimensions:
4.5 x 2.8 x 2.2mm
Mounting Type:
Surface Mount
Maximum Zener Impedance:
400Ω
Typical Voltage Temperature Coefficient:
0 %/°C, 0.045 %/°C
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
1µA
Maximum Power Dissipation:
3 W
Height:
2.2mm
Width:
2.8mm
Length:
4.5mm
Zener Type:
Voltage Regulator
Number of Elements per Chip:
1
Package Type:
DO-214AC (SMA)
Zener Voltage Tolerance:
7%
Diode Configuration:
Single
Pin Count:
2
Test Current:
45mA
RoHs Compliant
Checking for live stock

This is Zener Diode 5.6V 7% 3 W SMT 2-Pin DO-214AC manufactured by Vishay. The manufacturer part number is BZG05C5V6-E3-TR. Its nominal Zener voltage is 5.6v. The given dimensions of the product include 4.5 x 2.8 x 2.2mm. The product is available in surface mount configuration. While it has 400ω of maximum Zener impedance. The product has a typical 0 %/°c, 0.045 %/°c voltage temperature coefficient . It has a maximum operating temperature of +150 °c. The product has a maximum 1µa of reverse leakage current. Provides up to 3 w maximum power dissipation. In addition, the height is 2.2mm. Furthermore, the product is 2.8mm wide. Its accurate length is 4.5mm. The Zener is a type of voltage regulator Zener with unique features. It consists of 1 elements per chip. The package is a sort of do-214ac (sma). It has 7% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 45ma test current.
