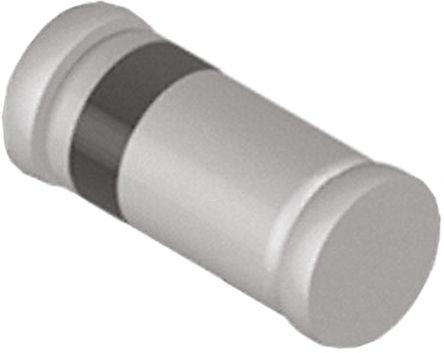

Vishay Zener Diode, 15V 5% 500 mW SMT 2-Pin SOD-80

TZM5245B-GS08 Vishay Zener Diode, 15V 5% 500 mW SMT 2-Pin SOD-80
Vishay

Product Information

Nominal Zener Voltage:
15V
Dimensions:
3.7 x 1.6 x 1.6mm
Mounting Type:
Surface Mount
Maximum Zener Impedance:
16Ω
Typical Voltage Temperature Coefficient:
0.082%/K
Maximum Operating Temperature:
+175 °C
Maximum Reverse Leakage Current:
100nA
Maximum Power Dissipation:
500 mW
Package Type:
SOD-80
Number of Elements per Chip:
1
Zener Type:
Voltage Regulator
Zener Voltage Tolerance:
5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
8.5mA
RoHs Compliant
Checking for live stock

This is Zener Diode 15V 5% 500 mW SMT 2-Pin SOD-80 manufactured by Vishay. The manufacturer part number is TZM5245B-GS08. Its nominal Zener voltage is 15v. The given dimensions of the product include 3.7 x 1.6 x 1.6mm. The product is available in surface mount configuration. While it has 16ω of maximum Zener impedance. The product has a typical 0.082%/k voltage temperature coefficient . It has a maximum operating temperature of +175 °c. The product has a maximum 100na of reverse leakage current. Provides up to 500 mw maximum power dissipation. The package is a sort of sod-80. It consists of 1 elements per chip. The Zener is a type of voltage regulator Zener with unique features. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 8.5ma test current.

pdf icon
TZM5221B to TZM5267B, Small Signal Zener Diodes(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
