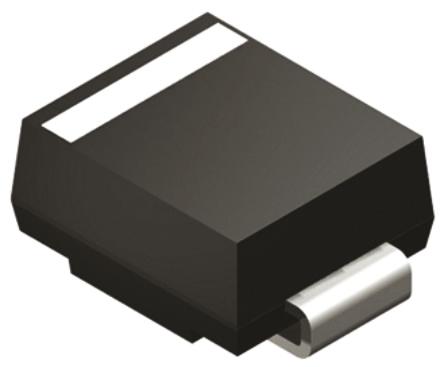

Vishay Zener Diode, 68V 5% 1.5 W SMT 2-Pin DO-214AA

Enrgtech Part No: ET13884493
|
Manufacturer Part No:
SMZJ3809B-E3/52
|
Manufacturer: Vishay

SMZJ3809B-E3-52 Vishay Zener Diode, 68V 5% 1.5 W SMT 2-Pin DO-214AA

Product Information

Nominal Zener Voltage:

68V

Dimensions:

4.57 x 3.94 x 2.24mm

Mounting Type:

Surface Mount

Maximum Zener Impedance:

120Ω

Maximum Operating Temperature:

+150 °C

Maximum Reverse Leakage Current:

5µA

Maximum Power Dissipation:

1.5 W

Package Type:

DO-214AA (SMB)

Number of Elements per Chip:

Minimum Operating Temperature:

-55 °C

Zener Type:

Voltage Regulator

Zener Voltage Tolerance:

Checking for live stock

This is Zener Diode 68V 5% 1.5 W SMT 2-Pin DO-214AA manufactured by Vishay. The manufacturer part number is SMZJ3809B-E3/52. Its nominal Zener voltage is 68v. The given dimensions of the product include 4.57 x 3.94 x 2.24mm. The product is available in surface mount configuration. While it has 120ω of maximum Zener impedance. It has a maximum operating temperature of +150 °c. The product has a maximum 5µa of reverse leakage current. Provides up to 1.5 w maximum power dissipation. The package is a sort of do-214aa (smb). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. The Zener is a type of voltage regulator Zener with unique features. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 5.5ma test current.

SMZJ3788B thru SMZJ3809B, Surface Mount Power Voltage-Regulating Diodes(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)
