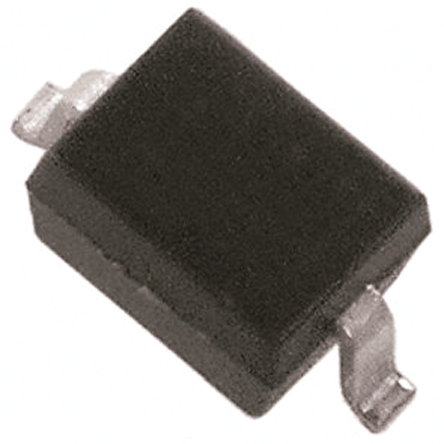

Diodes Inc Zener Diode, 3.3V 5% 200 mW SMT 2-Pin SOD-323

Enrgtech Part No: ET13855667
|
Manufacturer Part No:
MMSZ5226BS-7-F
|
Manufacturer: DiodesZetex

MMSZ5226BS-7-F Diodes Inc Zener Diode, 3.3V 5% 200 mW SMT 2-Pin SOD-323

Product Information

Nominal Zener Voltage:

3.3V

Dimensions:

1.8 x 1.4 x 1.1mm

Mounting Type:

Surface Mount

Maximum Zener Impedance:

28Ω

Maximum Operating Temperature:

+150 °C

Maximum Reverse Leakage Current:

25µA

Maximum Power Dissipation:

200 mW

Package Type:

SOD-323

Number of Elements per Chip:

Minimum Operating Temperature:

-65 °C

Zener Type:

General Purpose

Zener Voltage Tolerance:

Checking for live stock

This is Diodes Inc Zener Diode 3.3V 5% 200 mW SMT 2-Pin SOD-323 manufactured by DiodesZetex. The manufacturer part number is MMSZ5226BS-7-F. Its nominal Zener voltage is 3.3v. The given dimensions of the product include 1.8 x 1.4 x 1.1mm. The product is available in surface mount configuration. While it has 28ω of maximum Zener impedance. It has a maximum operating temperature of +150 °c. The product has a maximum 25µa of reverse leakage current. Provides up to 200 mw maximum power dissipation. The package is a sort of sod-323. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. The Zener is a type of general purpose Zener with unique features. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 20ma test current.

ESD Control Selection Guide V1(Technical Reference)

Surface Mount Zener Diode Datasheet(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search MMSZ5226BS-7-F on website for other similar products.

We accept all major payment methods for all products including ET13855667. Please check your shopping cart at the time of order.

You can order DiodesZetex brand products with MMSZ5226BS-7-F directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Zener Diodes category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Diodes Inc Zener Diode, 3.3V 5% 200 mW SMT 2-Pin SOD-323. You can also check on our website or by contacting our customer support team for further order details on Diodes Inc Zener Diode, 3.3V 5% 200 mW SMT 2-Pin SOD-323.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET13855667 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13855667.

Yes. We ship MMSZ5226BS-7-F Internationally to many countries around the world.
