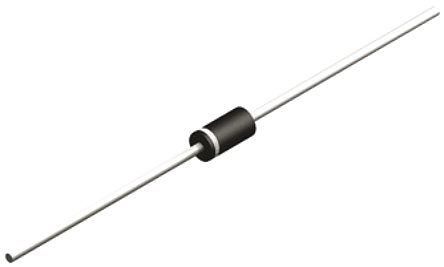

Vishay Zener Diode, 22V 5% 1300 mW Through Hole 2-Pin DO-41

ZPY22-TR Vishay Zener Diode, 22V 5% 1300 mW Through Hole 2-Pin DO-41
Vishay

Product Information

Nominal Zener Voltage:
22V
Dimensions:
2.6 (Dia.) x 5.2mm
Mounting Type:
Through Hole
Maximum Zener Impedance:
13Ω
Maximum Operating Temperature:
+175 °C
Maximum Reverse Leakage Current:
500nA
Maximum Power Dissipation:
1.3 W
Package Type:
DO-41
Number of Elements per Chip:
1
Zener Type:
General Purpose
Zener Voltage Tolerance:
5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
25mA
RoHs Compliant
Checking for live stock

This is Zener Diode 22V 5% 1300 mW Through Hole 2-Pin DO-41 manufactured by Vishay. The manufacturer part number is ZPY22-TR. Its nominal Zener voltage is 22v. The given dimensions of the product include 2.6 (dia.) x 5.2mm. The product is available in through hole configuration. While it has 13ω of maximum Zener impedance. It has a maximum operating temperature of +175 °c. The product has a maximum 500na of reverse leakage current. Provides up to 1.3 w maximum power dissipation. The package is a sort of do-41. It consists of 1 elements per chip. The Zener is a type of general purpose Zener with unique features. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 25ma test current.
