Vishay Zener Diode, 7.5V 5% 0.5 W Through Hole 2-Pin DO-35

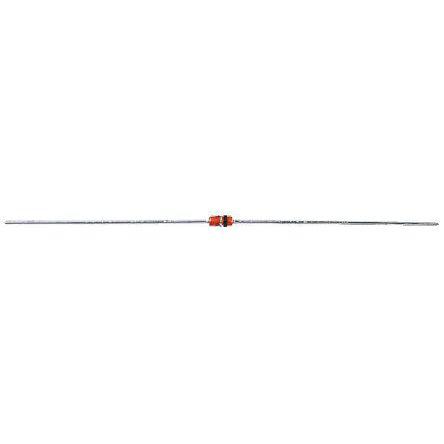

1N5236B-TR Vishay Zener Diode, 7.5V 5% 0.5 W Through Hole 2-Pin DO-35
Vishay

Product Information

Nominal Zener Voltage:
7.5V
Dimensions:
1.7 (Dia.) x 3.9mm
Mounting Type:
Through Hole
Maximum Zener Impedance:
6Ω
Typical Voltage Temperature Coefficient:
0.058%/K
Maximum Operating Temperature:
+175 °C
Maximum Reverse Leakage Current:
3µA
Maximum Power Dissipation:
500 mW
Package Type:
DO-35
Number of Elements per Chip:
1
Zener Type:
General Purpose
Zener Voltage Tolerance:
5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
20mA
RoHs Compliant
Checking for live stock

This is Zener Diode 7.5V 5% 0.5 W Through Hole 2-Pin DO-35 manufactured by Vishay. The manufacturer part number is 1N5236B-TR. Its nominal Zener voltage is 7.5v. The given dimensions of the product include 1.7 (dia.) x 3.9mm. The product is available in through hole configuration. While it has 6ω of maximum Zener impedance. The product has a typical 0.058%/k voltage temperature coefficient . It has a maximum operating temperature of +175 °c. The product has a maximum 3µa of reverse leakage current. Provides up to 500 mw maximum power dissipation. The package is a sort of do-35. It consists of 1 elements per chip. The Zener is a type of general purpose Zener with unique features. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 20ma test current.

pdf icon
1N5221B to 1N5267B Small Signal Zener Diodes(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 1N5236B-TR on website for other similar products.
We accept all major payment methods for all products including ET13795777. Please check your shopping cart at the time of order.
You can order Vishay brand products with 1N5236B-TR directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Zener Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay Zener Diode, 7.5V 5% 0.5 W Through Hole 2-Pin DO-35. You can also check on our website or by contacting our customer support team for further order details on Vishay Zener Diode, 7.5V 5% 0.5 W Through Hole 2-Pin DO-35.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13795777 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13795777.
Yes. We ship 1N5236B-TR Internationally to many countries around the world.
