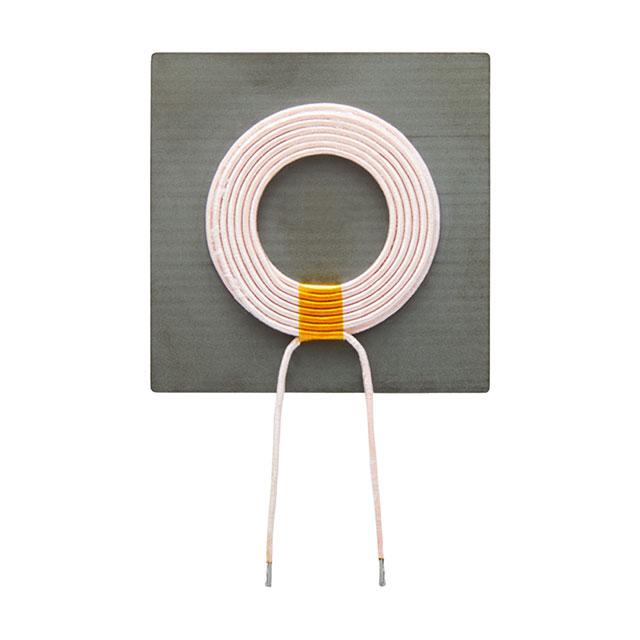

Signal Transformer WTSQ-10R0K-MP-A5

Enrgtech Part No: ET20033405
|
Manufacturer Part No:
WTSQ-10R0K-MP-A5
|
Manufacturer: Signal Transformer

Product Information

HTSUS:

8504.50.8000

RoHS Status:

ROHS3 Compliant

Operating Temperature:

-20°C ~ 85°C

Tolerance:

±10%

Function:

Transmitter

DC Resistance (DCR):

48mOhm Max

Type:

1 Coil, 2 Layer

REACH Status:

REACH Unaffected

Inductance:

10µH

Package:

Box

Size / Dimension:

2.09" L x 2.09" W x 0.21" H (53.0mm x 53.0mm x 5.3mm)

Current - Saturation (Isat):

10A

Checking for live stock

This is manufactured by Signal Transformer. The manufacturer part number is WTSQ-10R0K-MP-A5. It is assigned with possible HTSUS value of 8504.50.8000. The product is rohs3 compliant. The product has -20°c ~ 85°c operating temperature range. It features ±10% of tolerance value. It performs basic function of transmitter. It allows DC resistance of 48mohm max. It comes in 1 coil, 2 layer configuration. In addition, it is reach unaffected. The product has a 10µh inductance value. It is shipped in box package . The product's diameters include 2.09" l x 2.09" w x 0.21" h (53.0mm x 53.0mm x 5.3mm). It has a 10a saturation current. It has a long 20 weeks standard lead time. Additionally, the product's output is 7a. Its typical moisture sensitivity level is 1 (unlimited). The product wcc, is a highly preferred choice for users. The product is designated with the ear99 code number.

WCC Series Datasheet(Datasheets)

Signal Transformer REACH(Environmental Information)

RoHS EU Declaration Signal Transformer(Environmental Information)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search WTSQ-10R0K-MP-A5 on website for other similar products.

We accept all major payment methods for all products including ET20033405. Please check your shopping cart at the time of order.

You can order Signal Transformer brand products with WTSQ-10R0K-MP-A5 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Wireless Charging Coils category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Signal Transformer WTSQ-10R0K-MP-A5. You can also check on our website or by contacting our customer support team for further order details on Signal Transformer WTSQ-10R0K-MP-A5.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET20033405 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Signal Transformer" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20033405.

Yes. We ship WTSQ-10R0K-MP-A5 Internationally to many countries around the world.
