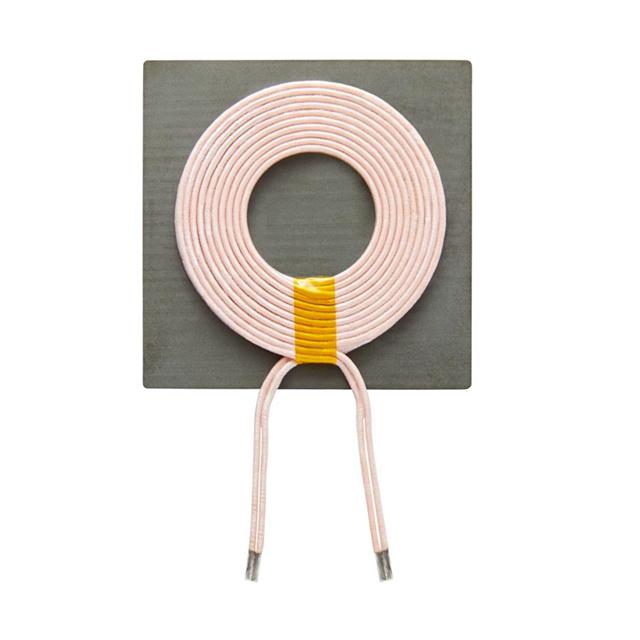

Signal Transformer WTSQ-6R3K-A11

WTSQ-6R3K-A11 Signal Transformer
Signal Transformer

Product Information

HTSUS:
8504.50.8000
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-20°C ~ 85°C
Tolerance:
±10%
Function:
Transmitter
DC Resistance (DCR):
25mOhm Max
Type:
2 Coil, 1 Layer
REACH Status:
REACH Unaffected
Inductance:
6.3µH
Package:
Box
Size / Dimension:
2.09" L x 2.09" W x 0.21" H (53.0mm x 53.0mm x 5.3mm)
Current - Saturation (Isat):
10A
standardLeadTime:
20 Weeks
Current Rating (Amps):
9A
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Frequency - Self Resonant:
-
Series:
WCC
Q @ Freq:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Signal Transformer. The manufacturer part number is WTSQ-6R3K-A11. It is assigned with possible HTSUS value of 8504.50.8000. The product is rohs3 compliant. The product has -20°c ~ 85°c operating temperature range. It features ±10% of tolerance value. It performs basic function of transmitter. It allows DC resistance of 25mohm max. It comes in 2 coil, 1 layer configuration. In addition, it is reach unaffected. The product has a 6.3µh inductance value. It is shipped in box package . The product's diameters include 2.09" l x 2.09" w x 0.21" h (53.0mm x 53.0mm x 5.3mm). It has a 10a saturation current. It has a long 20 weeks standard lead time. Additionally, the product's output is 9a. Its typical moisture sensitivity level is 1 (unlimited). The product wcc, is a highly preferred choice for users. The product is designated with the ear99 code number.

pdf icon
WCC Series, Single Datasheet(Datasheets)
pdf icon
Signal Transformer REACH(Environmental Information)
pdf icon
RoHS EU Declaration Signal Transformer(Environmental Information)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search WTSQ-6R3K-A11 on website for other similar products.
We accept all major payment methods for all products including ET19432411. Please check your shopping cart at the time of order.
You can order Signal Transformer brand products with WTSQ-6R3K-A11 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Wireless Charging Coils category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Signal Transformer WTSQ-6R3K-A11. You can also check on our website or by contacting our customer support team for further order details on Signal Transformer WTSQ-6R3K-A11.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET19432411 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Signal Transformer" products on our website by using Enrgtech's Unique Manufacturing Part Number ET19432411.
Yes. We ship WTSQ-6R3K-A11 Internationally to many countries around the world.
