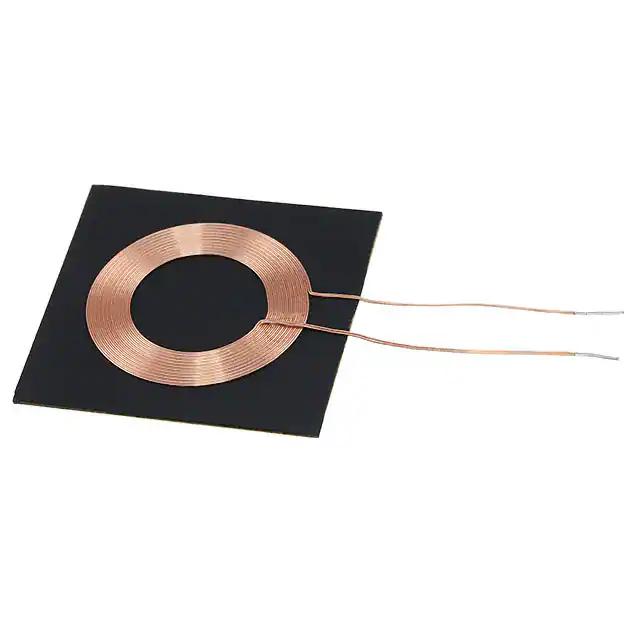

Würth Elektronik 760308102212

760308102212 Würth Elektronik
Würth Elektronik

Product Information

Function:
Receiver
Current - Saturation (Isat):
4A
Type:
1 Coil, 1 Layer
Frequency - Self Resonant:
25MHz
DC Resistance (DCR):
240mOhm Max
Series:
WE-WPCC
Detailed Description:
1 Coil, 1 Layer 5.4µH Wireless Charging Coil Receiver 240mOhm Max
Manufacturer Standard Lead Time:
16 Weeks
Size / Dimension:
1.14" L x 1.14" W x 0.04" H (29.0mm x 29.0mm x 0.9mm)
Operating Temperature:
-20°C ~ 105°C
Customer Reference:
Inductance:
5.4µH
Q @ Freq:
18 @ 125kHz
Tolerance:
±10%
Current Rating (Amps):
2A
Manufacturer:
Würth Elektronik
Checking for live stock

This is manufactured by Würth Elektronik. The manufacturer part number is 760308102212. It performs basic function of receiver. It has a 4a saturation current. It comes in 1 coil, 1 layer configuration. 25mhz is the self-resonant frequency of the product. It allows DC resistance of 240mohm max. The product we-wpcc, is a highly preferred choice for users. It features 1 coil, 1 layer 5.4µh wireless charging coil receiver 240mohm max. It has typical 16 weeks of manufacturer standard lead time. The product's diameters include 1.14" l x 1.14" w x 0.04" h (29.0mm x 29.0mm x 0.9mm). The product has -20°c ~ 105°c operating temperature range. The product has a 5.4µh inductance value. It has a typical frequency of 18 @ 125khz. It features ±10% of tolerance value. Additionally, the product's output is 2a. The würth elektronik's product offers user-desired applications.

pdf icon
RoHS Cert(Environmental Information)
pdf icon
WE-WPCC Assembly Chgs 17/Jul/2019(PCN Assembly/Origin)
pdf icon
760308102212 Drawing(Datasheets)
