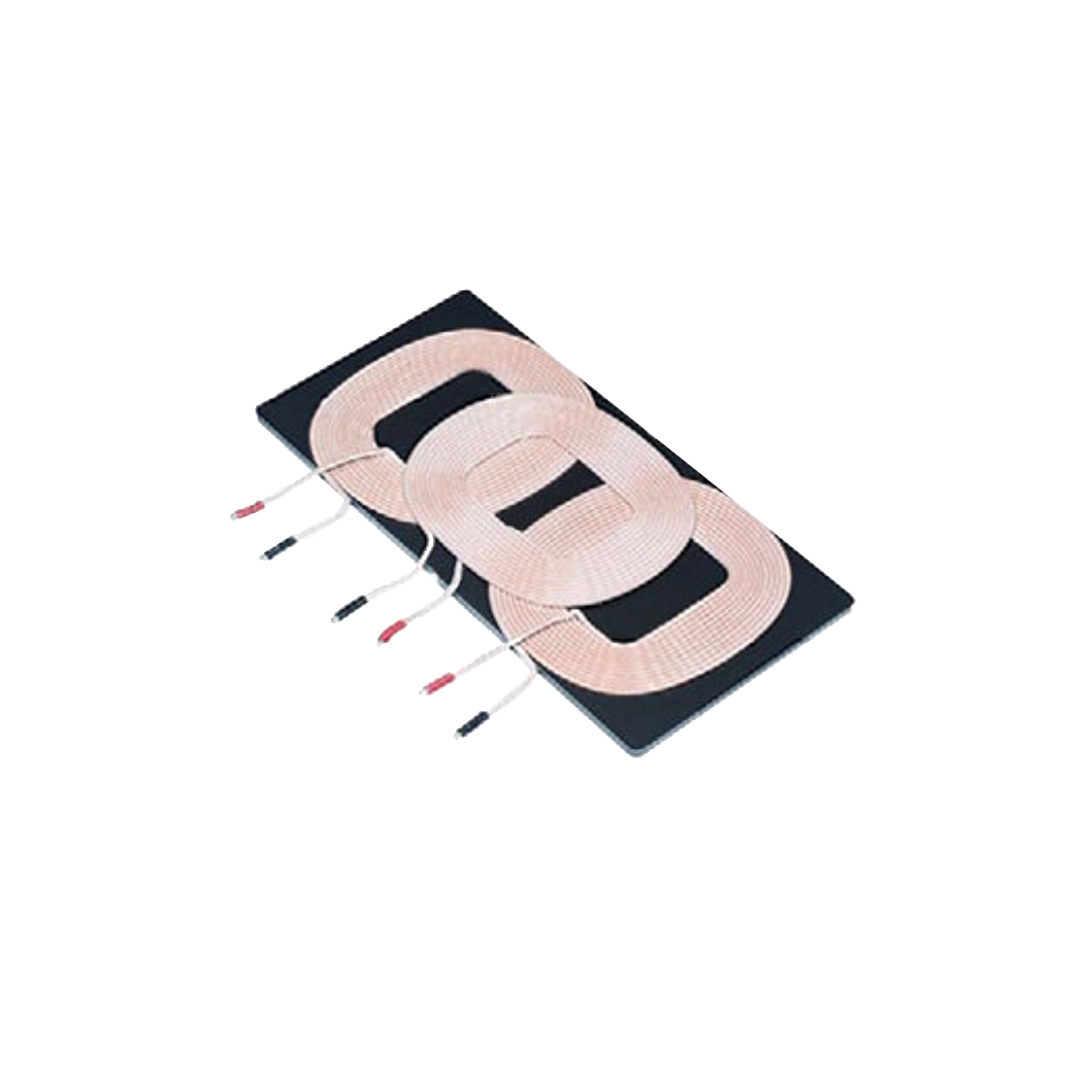

Vishay Dale IWTXA653FZEB120KF3

IWTXA653FZEB120KF3 Vishay Dale
Vishay Dale

Product Information

HTSUS:
8504.50.8000
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C
Tolerance:
±10%
Function:
Transmitter
DC Resistance (DCR):
80mOhm Max
Type:
3 Coil, 1 Layer
REACH Status:
REACH Unaffected
Inductance:
12.5µH, 11.5µH, 12.5µH
Manufacturer:
Vishay Dale
Size / Dimension:
4.17" L x 2.09" W x 0.24" H (106.0mm x 53.0mm x 6.0mm)
Current - Saturation (Isat):
-
standardLeadTime:
21 Weeks
Current Rating (Amps):
6.5A
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Frequency - Self Resonant:
-
Series:
-
Packaging:
Tray
Q @ Freq:
110 @ 100kHz, 100 @ 100kHz, 110 @ 100kHz
ECCN:
EAR99
Checking for live stock

This is manufactured by Vishay Dale. The manufacturer part number is IWTXA653FZEB120KF3. It is assigned with possible HTSUS value of 8504.50.8000. The product is rohs3 compliant. The product has -40°c ~ 85°c operating temperature range. It features ±10% of tolerance value. It performs basic function of transmitter. It allows DC resistance of 80mohm max. It comes in 3 coil, 1 layer configuration. In addition, it is reach unaffected. The product has a 12.5µh, 11.5µh, 12.5µh inductance value. The vishay dale's product offers user-desired applications. The product's diameters include 4.17" l x 2.09" w x 0.24" h (106.0mm x 53.0mm x 6.0mm). It has a long 21 weeks standard lead time. Additionally, the product's output is 6.5a. Its typical moisture sensitivity level is 1 (unlimited). In addition, tray is the available packaging type of the product. It has a typical frequency of 110 @ 100khz, 100 @ 100khz, 110 @ 100khz. The product is designated with the ear99 code number.

pdf icon
IWTXA653FZEB120KF3(Datasheets)
