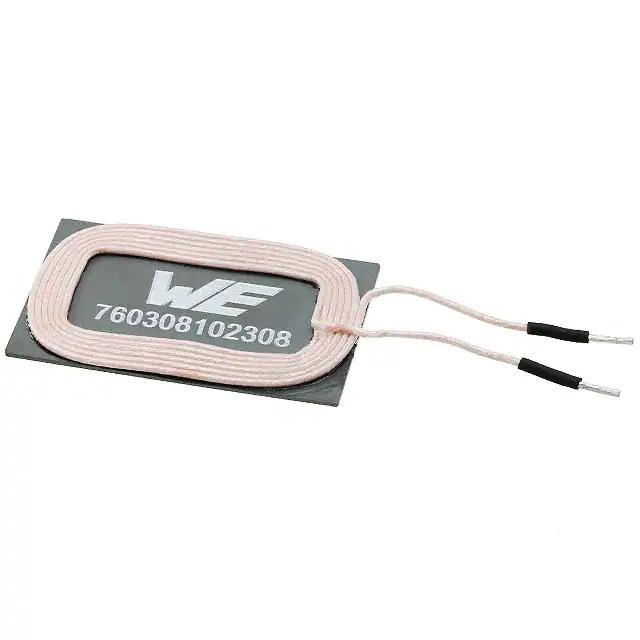

Wurth Electronics Inc. 760308102308

Enrgtech Part No: ET16439978
|
Manufacturer Part No:
760308102308
|
Manufacturer: Wurth Electronics Inc.

Product Information

Function:

Transmitter

Manufacturer Standard Lead Time:

13 Weeks

Type:

1 Coil, 1 Layer

Frequency - Self Resonant:

27MHz

DC Resistance (DCR):

35mOhm Max

Series:

WE-WPCC

Detailed Description:

1 Coil, 1 Layer 3µH Wireless Charging Coil Transmitter 35mOhm Max

Size / Dimension:

1.97" L x 1.18" W x 0.14" H (50.0mm x 30.0mm x 3.5mm)

Operating Temperature:

-20°C ~ 105°C

Inductance:

3µH

Q @ Freq:

60 @ 125kHz

Current - Saturation:

15A

Checking for live stock

This is manufactured by Wurth Electronics Inc.. The manufacturer part number is 760308102308. It performs basic function of transmitter. It has typical 13 weeks of manufacturer standard lead time. It comes in 1 coil, 1 layer configuration. 27mhz is the self-resonant frequency of the product. It allows DC resistance of 35mohm max. The product we-wpcc, is a highly preferred choice for users. It features 1 coil, 1 layer 3µh wireless charging coil transmitter 35mohm max. The product's diameters include 1.97" l x 1.18" w x 0.14" h (50.0mm x 30.0mm x 3.5mm). The product has -20°c ~ 105°c operating temperature range. The product has a 3µh inductance value. It has a typical frequency of 60 @ 125khz. Current - saturation of 15a. It features ±10% of tolerance value. Additionally, the product's output is 8.5a. The wurth electronics inc.'s product offers user-desired applications.

760308102308 Drawing(Datasheets)

WE-WPCC Assembly Chgs 17/Jul/2019(PCN Assembly/Origin)

RoHS Cert(Environmental Information)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search 760308102308 on website for other similar products.

We accept all major payment methods for all products including ET16439978. Please check your shopping cart at the time of order.

You can order Wurth Electronics Inc. brand products with 760308102308 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Wireless Charging Coils category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Wurth Electronics Inc. 760308102308. You can also check on our website or by contacting our customer support team for further order details on Wurth Electronics Inc. 760308102308.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET16439978 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Wurth Electronics Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET16439978.

Yes. We ship 760308102308 Internationally to many countries around the world.
