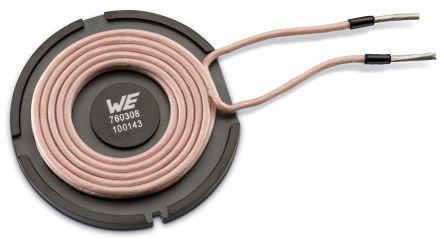

Wurth Elektronik Radial Wireless Charging Transmitter Coil, Ferrite Core, 50mm dia., 12A, 18mΩ, 180 Q Factor

760308100143 Wurth Elektronik Radial Wireless Charging Transmitter Coil, Ferrite Core, 50mm dia., 12A, 18mΩ, 180 Q Factor
Wurth Elektronik

Product Information

Function:
Transmitter
Diameter:
50mm
Dimensions:
50 (Dia.) x 6.5mm
Mounting Type:
Radial
Maximum DC Resistance:
18mΩ
Maximum DC Current:
12A
Series:
WE-WPCC
Q Factor:
180
Height:
6.5mm
Width:
50 (Dia.)mm
Core Material:
Ferrite Core
Inductance:
6 μH
Self Resonant Frequency:
16MHz
Maximum Operating Temperature:
+105°C
Minimum Operating Temperature:
-20°C
RoHs Compliant
Checking for live stock

This is Radial Wireless Charging Transmitter Coil Ferrite Core 50mm dia. 12A 18mΩ 180 Q Factor manufactured by Wurth Elektronik. The manufacturer part number is 760308100143. It performs basic function of transmitter. Its diameter is 50mm. The given dimensions of the product include 50 (dia.) x 6.5mm. The product is available in radial configuration. It allows up to 18mω maximum DC resistance. While it carries 12a of maximum DC current. The product we-wpcc, is a highly preferred choice for users. With 180 Q factor, the product is considered the best of its kind . In addition, the height is 6.5mm. Furthermore, the product is 50 (dia.)mm wide. The core is manufactured from highly durable and reliable ferrite core materials. The product has a 6 μh inductance value. It has a self resonant frequency of 16mhz . It has a maximum operating temperature of +105°c. Whereas, the minimum operating temperature of the product is -20°c.

pdf icon
Wurth Elektronik 760308100143 Charging Coils Datasheet(Technical Reference)
pdf icon
Selection and Characteristics of WE-FSFS Ferrite Sheets - Application Note(Technical Reference)
pdf icon
High Power Wireless Power Transfer for the Industrial Environment - ANP032D Application Note(Technical Reference)
