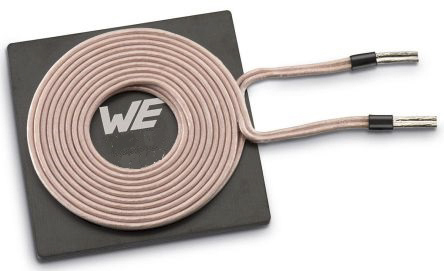

Wurth Elektronik Radial Wireless Charging Transmitter Coil, Ferrite Core, 20.5mm dia., 2.5A, 125mΩ, 42 Q Factor

Enrgtech Part No: ET13899832
|
Manufacturer Part No:
760308101104
|
Manufacturer: Wurth Elektronik

760308101104 Wurth Elektronik Radial Wireless Charging Transmitter Coil, Ferrite Core, 20.5mm dia., 2.5A, 125mΩ, 42 Q Factor

Product Information

Function:

Transmitter

Diameter:

20.5mm

Dimensions:

20.5 (Dia.) x 2.8mm

Mounting Type:

Radial

Maximum DC Resistance:

125mΩ

Maximum DC Current:

2.5A

Series:

WE-WPCC

Q Factor:

Height:

2.8mm

Core Material:

Ferrite Core

Inductance:

6.5 μH

Self Resonant Frequency:

20MHz

Checking for live stock

This is Radial Wireless Charging Transmitter Coil Ferrite Core 20.5mm dia. 2.5A 125mΩ 42 Q Factor manufactured by Wurth Elektronik. The manufacturer part number is 760308101104. It performs basic function of transmitter. Its diameter is 20.5mm. The given dimensions of the product include 20.5 (dia.) x 2.8mm. The product is available in radial configuration. It allows up to 125mω maximum DC resistance. While it carries 2.5a of maximum DC current. The product we-wpcc, is a highly preferred choice for users. With 42 Q factor, the product is considered the best of its kind . In addition, the height is 2.8mm. The core is manufactured from highly durable and reliable ferrite core materials. The product has a 6.5 μh inductance value. It has a self resonant frequency of 20mhz . It has a maximum operating temperature of +105°c. Whereas, the minimum operating temperature of the product is -20°c.

Wurth Elektronik Application Note - High Power Wireless Power Transfer for the Industrial Environment(Technical Reference)

Wurth Elektronik Application Note - Wireless Energy Transmission Coils as Key Components(Technical Reference)

Wurth Elektronik Application Note - Wireless Power Charging Coil Changing Considerations(Technical Reference)

Selection and Characteristics of WE-FSFS Ferrite Sheets - Application Note(Technical Reference)

Wurth Elektronik WE-WPCC Charging Transmitter Coil Datasheet(Technical Reference)
