Wurth Elektronik Radial Wireless Charging Transmitter Coil, Ferrite Core, 9A, 45mΩ, 100 Q Factor

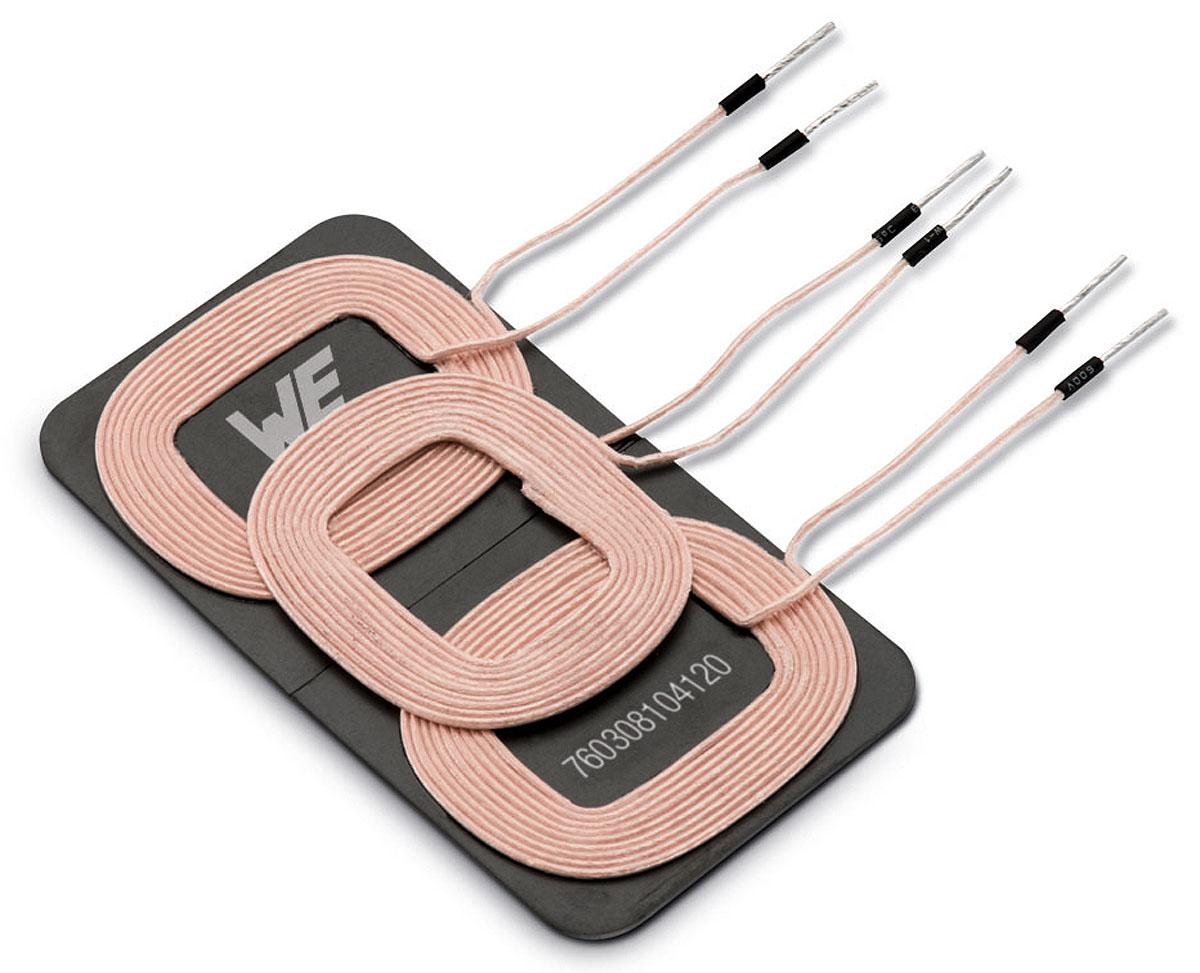

760308104120 Wurth Elektronik Radial Wireless Charging Transmitter Coil, Ferrite Core, 9A, 45mΩ, 100 Q Factor
Wurth Elektronik

Product Information

Function:
Transmitter
Maximum DC Resistance:
45mΩ
Dimensions:
91.7 x 5.5 x 50mm
Mounting Type:
Radial
Maximum DC Current:
9A
Series:
WE-WPCC
Q Factor:
100
Height:
50mm
Width:
5.5mm
Length:
91.7mm
Core Material:
Ferrite Core
Inductance:
6.4 (L2) μH, 6.9 (L1) μH
Self Resonant Frequency:
15MHz
Maximum Operating Temperature:
+105°C
Minimum Operating Temperature:
-20°C
Inductance Tolerance:
±10 %
RoHs Compliant
Checking for live stock

This is Radial Wireless Charging Transmitter Coil Ferrite Core 9A 45mΩ 100 Q Factor manufactured by Wurth Elektronik. The manufacturer part number is 760308104120. It performs basic function of transmitter. It allows up to 45mω maximum DC resistance. The given dimensions of the product include 91.7 x 5.5 x 50mm. The product is available in radial configuration. While it carries 9a of maximum DC current. The product we-wpcc, is a highly preferred choice for users. With 100 Q factor, the product is considered the best of its kind . In addition, the height is 50mm. Furthermore, the product is 5.5mm wide. Its accurate length is 91.7mm. The core is manufactured from highly durable and reliable ferrite core materials. The product has a 6.4 (l2) μh, 6.9 (l1) μh inductance value. It has a self resonant frequency of 15mhz . It has a maximum operating temperature of +105°c. Whereas, the minimum operating temperature of the product is -20°c. It has a standard ±10 % inductance tolerance .

pdf icon
Wurth Elektronik 760308104120 Charging Coils Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 760308104120 on website for other similar products.
We accept all major payment methods for all products including ET13899829. Please check your shopping cart at the time of order.
You can order Wurth Elektronik brand products with 760308104120 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Wireless Charging Coils category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Wurth Elektronik Radial Wireless Charging Transmitter Coil, Ferrite Core, 9A, 45mΩ, 100 Q Factor. You can also check on our website or by contacting our customer support team for further order details on Wurth Elektronik Radial Wireless Charging Transmitter Coil, Ferrite Core, 9A, 45mΩ, 100 Q Factor.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13899829 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Wurth Elektronik" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13899829.
Yes. We ship 760308104120 Internationally to many countries around the world.
