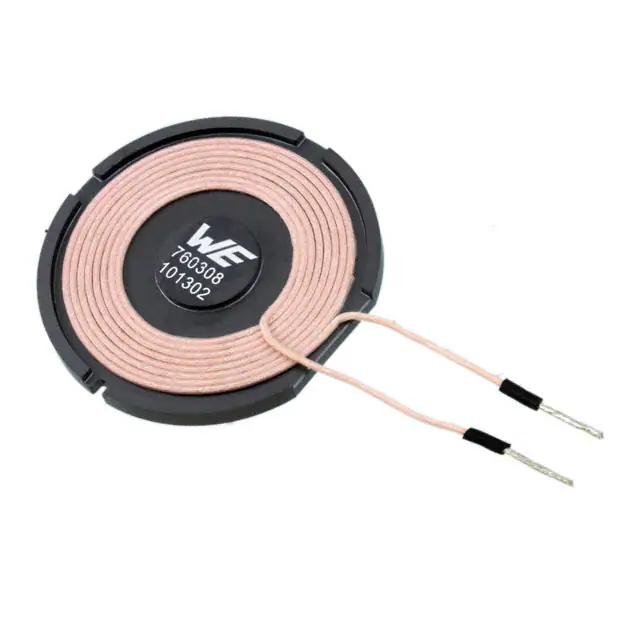

Wurth Electronics Inc. 760308101302

760308101302 Wurth Electronics Inc.
Wurth Electronics Inc.

Product Information

Function:
Transmitter
Manufacturer Standard Lead Time:
17 Weeks
Type:
1 Coil, 1 Layer
Frequency - Self Resonant:
27MHz
DC Resistance (DCR):
33mOhm
Series:
WE-WPCC
Detailed Description:
1 Coil, 1 Layer 5.3µH Wireless Charging Coil Transmitter 33mOhm
Size / Dimension:
1.97" Dia x 0.19" H (50.0mm x 4.7mm)
Operating Temperature:
-20°C ~ 105°C
Inductance:
5.3µH
Q @ Freq:
100 @ 125kHz
Current - Saturation:
10A
Tolerance:
±10%
Current Rating (Amps):
8A
Manufacturer:
Wurth Electronics Inc.
Checking for live stock

This is manufactured by Wurth Electronics Inc.. The manufacturer part number is 760308101302. It performs basic function of transmitter. It has typical 17 weeks of manufacturer standard lead time. It comes in 1 coil, 1 layer configuration. 27mhz is the self-resonant frequency of the product. It allows DC resistance of 33mohm. The product we-wpcc, is a highly preferred choice for users. It features 1 coil, 1 layer 5.3µh wireless charging coil transmitter 33mohm. The product's diameters include 1.97" dia x 0.19" h (50.0mm x 4.7mm). The product has -20°c ~ 105°c operating temperature range. The product has a 5.3µh inductance value. It has a typical frequency of 100 @ 125khz. Current - saturation of 10a. It features ±10% of tolerance value. Additionally, the product's output is 8a. The wurth electronics inc.'s product offers user-desired applications.

pdf icon
RoHS Cert(Environmental Information)
pdf icon
WE-WPCC Assembly Chgs 17/Jul/2019(PCN Assembly/Origin)
pdf icon
760308101302 Drawing(Datasheets)
