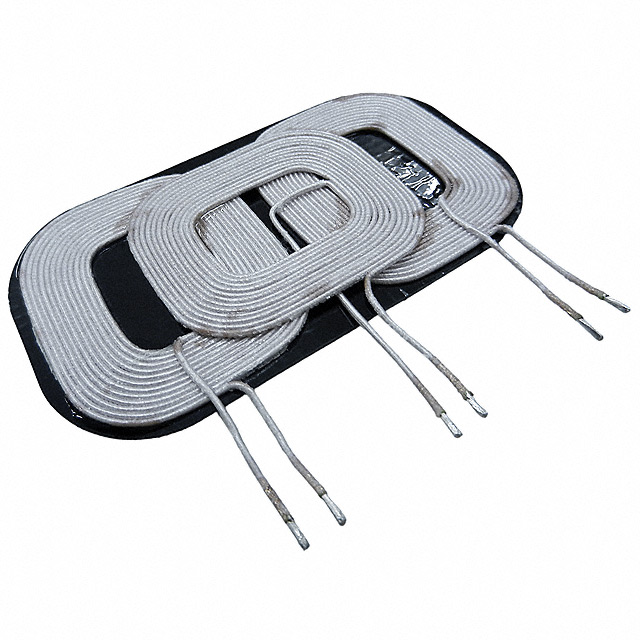

TDK Corporation WT-1005660-12K2-A6-G

WT-1005660-12K2-A6-G TDK Corporation
TDK Corporation

Product Information

HTSUS:
8504.50.4000
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-30°C ~ 70°C
Tolerance:
±10%
Function:
Transmitter
DC Resistance (DCR):
80mOhm Max
title:
WT-1005660-12K2-A6-G
Type:
3 Coil, 1 Layer
edacadModel:
WT-1005660-12K2-A6-G Models
Inductance:
12.5µH, 11.5µH, 12.5µH
edacadModelUrl:
/en/models/3829608
Manufacturer:
TDK Corporation
Size / Dimension:
3.94" L x 2.20" W x 0.11" H (100.0mm x 56.0mm x 2.8mm)
Current - Saturation (Isat):
-
Current Rating (Amps):
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Frequency - Self Resonant:
-
Series:
WT
Packaging:
Tray
Q @ Freq:
70 @ 100kHz
ECCN:
EAR99
Checking for live stock

This is manufactured by TDK Corporation. The manufacturer part number is WT-1005660-12K2-A6-G. It is assigned with possible HTSUS value of 8504.50.4000. The product is rohs3 compliant. The product has -30°c ~ 70°c operating temperature range. It features ±10% of tolerance value. It performs basic function of transmitter. It allows DC resistance of 80mohm max. It comes in 3 coil, 1 layer configuration. The product has a 12.5µh, 11.5µh, 12.5µh inductance value. The tdk corporation's product offers user-desired applications. The product's diameters include 3.94" l x 2.20" w x 0.11" h (100.0mm x 56.0mm x 2.8mm). Its typical moisture sensitivity level is 1 (unlimited). The product wt, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a typical frequency of 70 @ 100khz. The product is designated with the ear99 code number.

pdf icon
WT-1005660-12K2-A6-G Spec(Datasheets)
pdf icon
Multiple Devices NRND 23/Jul/2020(PCN Part Status Change)
