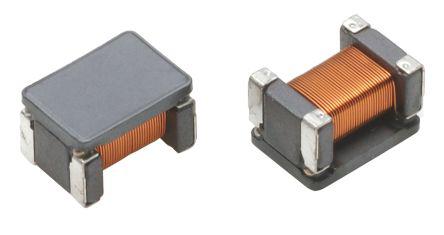

TDK ACT Series Type 1812 Shielded SMD Common Mode Line Filter 11 μH -30 → +50% Wire-Wound 250mA Idc

ACT45B-110-2P-TL TDK ACT Series Type 1812 Shielded SMD Common Mode Line Filter 11 μH -30 → +50% Wire-Wound 250mA Idc
TDK

Product Information

Maximum DC Resistance:
600mΩ
Inductor Construction:
Wire-Wound
Dimensions:
4.5 x 3.2 x 2.8mm
Shielded:
Yes
Series:
ACT
Minimum Operating Temperature:
-40°C
Length:
4.5mm
Height:
2.8mm
Maximum DC Current:
250mA
Depth:
3.2mm
Inductance:
11 μH
Maximum Operating Temperature:
+150°C
Tolerance:
-30 → +50%
Package/Case:
1812 (4532M)
RoHs Compliant
Checking for live stock

This is ACT Series Type 1812 Shielded SMD Common Mode Line Filter 11 μH -30 → +50% Wire-Wound 250mA Idc manufactured by TDK. The manufacturer part number is ACT45B-110-2P-TL. It allows up to 600mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 4.5 x 3.2 x 2.8mm. Shielding Options yes. The product act, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. Its accurate length is 4.5mm. In addition, the height is 2.8mm. While it carries 250ma of maximum DC current. The product comes in 3.2mm depth. The product has a 11 μh inductance value. It has a maximum operating temperature of +150°c. It features -30 → +50% of tolerance value. Concerning its package and casing, it is 1812 (4532m).

pdf icon
ACT45B Datasheet_EN(Technical Reference)
