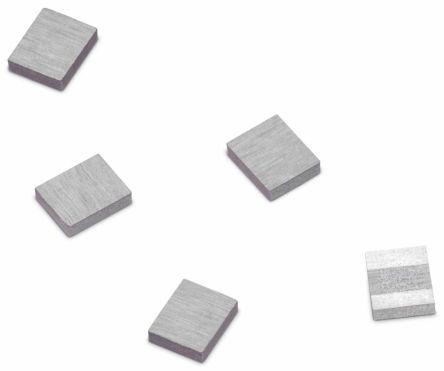

Wurth WE-MAPI Series Type 2512 Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core, 3.3 μH ±20%

74438324033 Wurth WE-MAPI Series Type 2512 Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core, 3.3 μH ±20%
Wurth Elektronik

Product Information

Maximum DC Resistance:
260mΩ
Inductor Construction:
Wire-Wound
Dimensions:
2.5 x 2 x 1.2mm
Shielded:
Yes
Series:
WE-MAPI
Length:
2.5mm
Height:
1.2mm
Maximum DC Current:
1.3A
Depth:
2mm
Core Material:
Magnetic Iron Alloy
Inductance:
3.3 μH
Maximum Self Resonant Frequency:
42MHz
Maximum Operating Temperature:
+125°C
Tolerance:
±20%
Minimum Operating Temperature:
-40°C
Package/Case:
2512 (6432M)
RoHs Compliant
Checking for live stock

This is Wurth WE-MAPI Series Type 2512 Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core 3.3 μH ±20% manufactured by Wurth Elektronik. The manufacturer part number is 74438324033. It allows up to 260mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 2.5 x 2 x 1.2mm. Shielding Options yes. The product we-mapi, is a highly preferred choice for users. Its accurate length is 2.5mm. In addition, the height is 1.2mm. While it carries 1.3a of maximum DC current. The product comes in 2mm depth. The core is manufactured from highly durable and reliable magnetic iron alloy materials. The product has a 3.3 μh inductance value. It provides 42mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. Concerning its package and casing, it is 2512 (6432m).

pdf icon
Datasheet(Technical Reference)
pdf icon
Accurate Inductor Loss Determination - Application Note(Technical Reference)
pdf icon
Voids in Bottom Termination Components (BTC) - ANP036 Application Note(Technical Reference)
pdf icon
Ideal Power Inductors for Energy Efficient Applications - ANP031 Application Note(Technical Reference)
pdf icon
Application Note - The Sham of the High Rated Current(Technical Reference)
