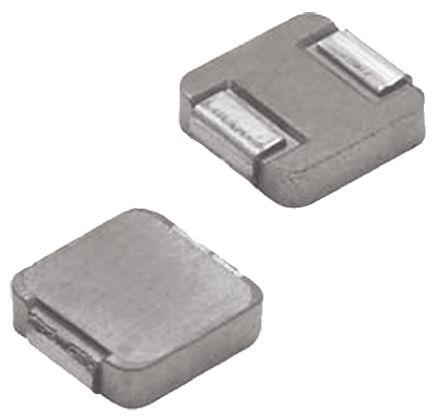

Vishay IHLP-1616AB-01 Series Type 1616 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 47 nH ±20%

Enrgtech Part No: ET16722473
|
Manufacturer Part No:
IHLP1616ABER47NM01
|
Manufacturer: Vishay

IHLP1616ABER47NM01 Vishay IHLP-1616AB-01 Series Type 1616 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 47 nH ±20%

Product Information

Maximum DC Resistance:

3.75mΩ

Inductor Construction:

Wire-Wound

Dimensions:

4.45 x 4.06 x 1.2mm

Shielded:

Yes

Series:

IHLP

Length:

4.45mm

Height:

1.2mm

Maximum DC Current:

13A

Depth:

4.06mm

Core Material:

Metal Composite

Inductance:

47 nH

Maximum Self Resonant Frequency:

565MHz

Checking for live stock

This is IHLP-1616AB-01 Series Type 1616 Shielded Wire-wound SMD Inductor with a Metal Composite Core 47 nH ±20% manufactured by Vishay. The manufacturer part number is IHLP1616ABER47NM01. It allows up to 3.75mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 4.45 x 4.06 x 1.2mm. Shielding Options yes. The product ihlp, is a highly preferred choice for users. Its accurate length is 4.45mm. In addition, the height is 1.2mm. While it carries 13a of maximum DC current. The product comes in 4.06mm depth. The core is manufactured from highly durable and reliable metal composite materials. The product has a 47 nh inductance value. It provides 565mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. Concerning its package and casing, it is 1616.

Application Note(Technical Reference)

Power Inductors Capabilities(Technical Reference)

Power Inductors 101(Technical Reference)

ihlp16ab01 data sheet(Technical Reference)

Did You Know?(Technical Reference)

IHLP Selection Example(Technical Reference)

Power Inductors Infograph(Technical Reference)
