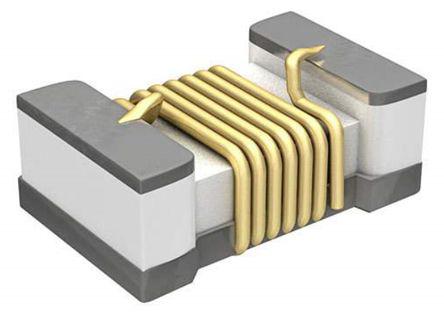

Murata LQW15A Series Type 0402 Wire-wound SMD Inductor with a Ferrite Core, 62 nH ±3% Wire-Wound 145mA Idc Q:20

LQW15AN62NH00D Murata LQW15A Series Type 0402 Wire-wound SMD Inductor with a Ferrite Core, 62 nH ±3% Wire-Wound 145mA Idc Q:20
Murata

Product Information

Maximum DC Resistance:
1.82Ω
Inductor Construction:
Wire-Wound
Dimensions:
1 x 0.5 x 0.5mm
Maximum DC Current:
145mA
Series:
LQW15A
Minimum Quality Factor:
20
Length:
1mm
Height:
0.5mm
Depth:
0.5mm
Core Material:
Ferrite
Inductance:
62 nH
Maximum Self Resonant Frequency:
2.6GHz
Maximum Operating Temperature:
+125°C
Tolerance:
±3%
Minimum Operating Temperature:
-55°C
Package/Case:
0402 (1005M)
RoHs Compliant
Checking for live stock

This is LQW15A Series Type 0402 Wire-wound SMD Inductor with a Ferrite Core 62 nH ±3% Wire-Wound 145mA Idc Q:20 manufactured by Murata. The manufacturer part number is LQW15AN62NH00D. It allows up to 1.82ω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 1 x 0.5 x 0.5mm. While it carries 145ma of maximum DC current. The product lqw15a, is a highly preferred choice for users. It has minimum 20 quality factors. Its accurate length is 1mm. In addition, the height is 0.5mm. The product comes in 0.5mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 62 nh inductance value. It provides 2.6ghz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±3% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. Concerning its package and casing, it is 0402 (1005m).

pdf icon
LQW15AN_00 Series (0402 Size) Data Sheet(Technical Reference)
