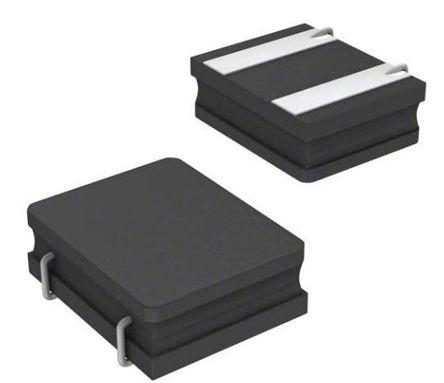

Murata LQH Series Type 2520 Shielded Wire-wound SMD Inductor with a Ferrite Core, 6.8 μH Wire-Wound 860mA Idc

LQH2HPZ6R8MGRL Murata LQH Series Type 2520 Shielded Wire-wound SMD Inductor with a Ferrite Core, 6.8 μH Wire-Wound 860mA Idc
Murata

Product Information

Maximum DC Resistance:
470mΩ
Inductor Construction:
Wire-Wound
Dimensions:
2.5 x 2 x 0.9mm
Shielded:
Yes
Series:
LQH
Minimum Operating Temperature:
-40°C
Length:
2.5mm
Height:
0.9mm
Maximum DC Current:
860mA
Depth:
2mm
Core Material:
Ferrite
Inductance:
6.8 μH
Maximum Self Resonant Frequency:
Minimum of 40MHz
Maximum Operating Temperature:
+105 (Ambient) °C, +125 (Product) °C
Moulded:
Yes
Package/Case:
2520
RoHs Compliant
Checking for live stock

This is LQH Series Type 2520 Shielded Wire-wound SMD Inductor with a Ferrite Core 6.8 μH Wire-Wound 860mA Idc manufactured by Murata. The manufacturer part number is LQH2HPZ6R8MGRL. It allows up to 470mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 2.5 x 2 x 0.9mm. Shielding Options yes. The product lqh, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. Its accurate length is 2.5mm. In addition, the height is 0.9mm. While it carries 860ma of maximum DC current. The product comes in 2mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 6.8 μh inductance value. It provides minimum of 40mhz of maximum self-resonant frequency. It has a maximum operating temperature of +105 (ambient) °c, +125 (product) °c. In addition, it is moulded yes . Concerning its package and casing, it is 2520.
