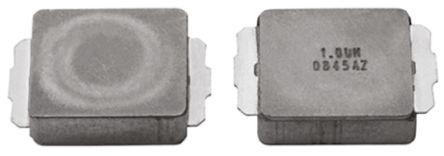

Vishay IHLW Series Type 5050 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 4.7 μH ±20% 10A Idc

IHLW5050CEER4R7M01 Vishay IHLW Series Type 5050 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 4.7 μH ±20% 10A Idc
Vishay

Product Information

Maximum DC Resistance:
15mΩ
Dimensions:
12.7 x 12.7 x 3.5mm
Shielded:
Yes
Series:
IHLW
Length:
12.7mm
Height:
3.5mm
Maximum DC Current:
10A
Depth:
12.7mm
Core Material:
Metal Composite
Inductance:
4.7 μH
Maximum Self Resonant Frequency:
5MHz
Maximum Operating Temperature:
+125°C
Tolerance:
±20%
Minimum Operating Temperature:
-55°C
Package/Case:
5050
RoHs Compliant
Checking for live stock

This is IHLW Series Type 5050 Shielded Wire-wound SMD Inductor with a Metal Composite Core 4.7 μH ±20% 10A Idc manufactured by Vishay. The manufacturer part number is IHLW5050CEER4R7M01. It allows up to 15mω maximum DC resistance. The given dimensions of the product include 12.7 x 12.7 x 3.5mm. Shielding Options yes. The product ihlw, is a highly preferred choice for users. Its accurate length is 12.7mm. In addition, the height is 3.5mm. While it carries 10a of maximum DC current. The product comes in 12.7mm depth. The core is manufactured from highly durable and reliable metal composite materials. The product has a 4.7 μh inductance value. It provides 5mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. Concerning its package and casing, it is 5050.

pdf icon
IHLW50CE01 Data Sheet(Technical Reference)
