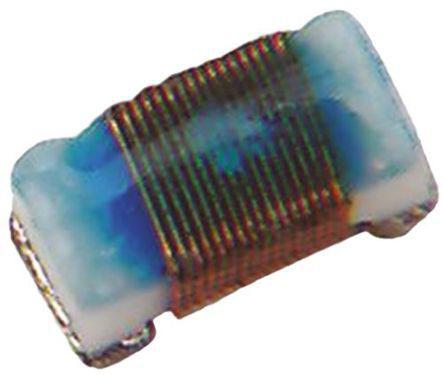

Murata LQW04A Series Type 03015 Wire-wound SMD Inductor with a Ferrite Core, 1.8 nH ±0.5nH Wire-Wound 700mA Idc Q:15

LQW04AN1N8D00D Murata LQW04A Series Type 03015 Wire-wound SMD Inductor with a Ferrite Core, 1.8 nH ±0.5nH Wire-Wound 700mA Idc Q:15
LQW04AN1N8D00D
LQW04AN1N8D00D
ET13969488
ET13969488
Wire-Wound Surface Mount Inductors
Murata

Product Information

Maximum DC Resistance:
60mΩ
Inductor Construction:
Wire-Wound
Dimensions:
0.8 x 0.4 x 0.4mm
Maximum DC Current:
700mA
Series:
LQW04A
Minimum Operating Temperature:
-55°C
Minimum Quality Factor:
15
Length:
0.8mm
Height:
0.4mm
Depth:
0.4mm
Core Material:
Ferrite
Inductance:
1.8 nH
Maximum Self Resonant Frequency:
17GHz
Maximum Operating Temperature:
+125°C
Tolerance:
±0.5nH
Package/Case:
03015
RoHs Compliant
Checking for live stock

This is LQW04A Series Type 03015 Wire-wound SMD Inductor with a Ferrite Core 1.8 nH ±0.5nH Wire-Wound 700mA Idc Q:15 manufactured by Murata. The manufacturer part number is LQW04AN1N8D00D. It allows up to 60mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 0.8 x 0.4 x 0.4mm. While it carries 700ma of maximum DC current. The product lqw04a, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -55°c. It has minimum 15 quality factors. Its accurate length is 0.8mm. In addition, the height is 0.4mm. The product comes in 0.4mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 1.8 nh inductance value. It provides 17ghz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±0.5nh of tolerance value. Concerning its package and casing, it is 03015.

pdf icon
LQW04A Series (03015 Size) Chip Inductor (Chip Coil) for High Frequency Horizontal Wire Wound Data Sheet(Technical Reference)
