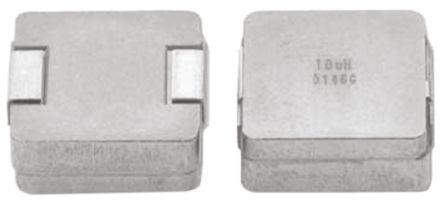

Vishay IHLP-5050EZ-01 Series Type 5050 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 3.3 μH ±20%

Enrgtech Part No: ET13922243
|
Manufacturer Part No:
IHLP5050EZER3R3M01
|
Manufacturer: Vishay

IHLP5050EZER3R3M01 Vishay IHLP-5050EZ-01 Series Type 5050 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 3.3 μH ±20%

Product Information

Maximum DC Resistance:

9.2mΩ

Inductor Construction:

Wire-Wound

Dimensions:

13.2 x 12.9 x 5mm

Shielded:

Yes

Series:

IHLP-5050EZ-01

Minimum Operating Temperature:

-55°C

Length:

13.2mm

Height:

5mm

Maximum DC Current:

15A

Depth:

12.9mm

Core Material:

Metal Composite

Inductance:

3.3 μH

Checking for live stock

This is IHLP-5050EZ-01 Series Type 5050 Shielded Wire-wound SMD Inductor with a Metal Composite Core 3.3 μH ±20% manufactured by Vishay. The manufacturer part number is IHLP5050EZER3R3M01. It allows up to 9.2mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 13.2 x 12.9 x 5mm. Shielding Options yes. The product ihlp-5050ez-01, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -55°c. Its accurate length is 13.2mm. In addition, the height is 5mm. While it carries 15a of maximum DC current. The product comes in 12.9mm depth. The core is manufactured from highly durable and reliable metal composite materials. The product has a 3.3 μh inductance value. It provides 5mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. Concerning its package and casing, it is 5050.

Application Note(Technical Reference)

IHLP50EZ01 Data Sheet(Technical Reference)

Power Inductors 101(Technical Reference)

Power Inductors Capabilities(Technical Reference)

Did You Know?(Technical Reference)

IHLP Selection Example(Technical Reference)

Power Inductors Infograph(Technical Reference)
