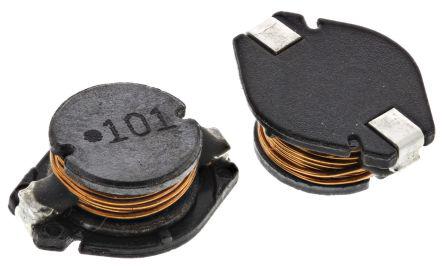

Wurth WE-PD2 Series Type 4532 Unshielded Wire-wound SMD Inductor 39 μH ±10% 770mA Idc

Enrgtech Part No: ET13900202
|
Manufacturer Part No:
744773139
|
Manufacturer: Wurth Elektronik

744773139 Wurth WE-PD2 Series Type 4532 Unshielded Wire-wound SMD Inductor 39 μH ±10% 770mA Idc

Product Information

Maximum DC Resistance:

587mΩ

Dimensions:

4.5 x 4 x 3.2mm

Shielded:

Series:

WE-PD2

Minimum Operating Temperature:

-40°C

Length:

4.5mm

Height:

3.2mm

Maximum DC Current:

770mA

Depth:

4mm

Inductance:

39 μH

Maximum Self Resonant Frequency:

15MHz

Maximum Operating Temperature:

+125°C

Checking for live stock

This is Wurth WE-PD2 Series Type 4532 Unshielded Wire-wound SMD Inductor 39 μH ±10% 770mA Idc manufactured by Wurth Elektronik. The manufacturer part number is 744773139. It allows up to 587mω maximum DC resistance. The given dimensions of the product include 4.5 x 4 x 3.2mm. Shielding Options no. The product we-pd2, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. Its accurate length is 4.5mm. In addition, the height is 3.2mm. While it carries 770ma of maximum DC current. The product comes in 4mm depth. The product has a 39 μh inductance value. It provides 15mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±10% of tolerance value. In addition, it is moulded yes . Concerning its package and casing, it is 4532.

8 Design Tips for Power Inductors from Wurth Elektronik - Application Note(Technical Reference)

Negative Input Resistance of Switching Regulators - Application Note(Technical Reference)

EMC Filter for DC/DC Switching Controller Optimised - Application Note(Technical Reference)

Direct Current Losses at the Output Filter of a Switching Controller - ANP009B Application Note(Technical Reference)

Influence of Control Loop by an Output Filter - ANP006B Application Note(Technical Reference)

Inductor SMD shielded WE-PD2 S 4532 39uH Data Sheet(Technical Reference)
