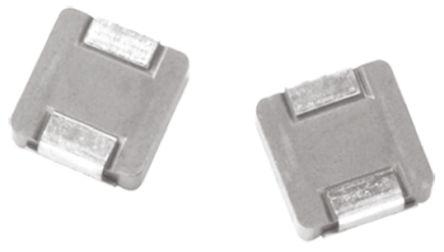

Vishay IHLP Series Type 2525 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 1.5 μH ±20% Wire-Wound

Enrgtech Part No: ET13832892
|
Manufacturer Part No:
IHLP2525BDER1R5M01
|
Manufacturer: Vishay

IHLP2525BDER1R5M01 Vishay IHLP Series Type 2525 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 1.5 μH ±20% Wire-Wound

Product Information

Maximum DC Resistance:

21.2mΩ

Inductor Construction:

Wire-Wound

Dimensions:

6.86 x 6.47 x 2.4mm

Shielded:

Yes

Series:

IHLP

Length:

6.86mm

Height:

2.4mm

Maximum DC Current:

7.5A

Depth:

6.47mm

Core Material:

Metal Composite

Inductance:

1.5 μH

Maximum Self Resonant Frequency:

5MHz

Checking for live stock

This is IHLP Series Type 2525 Shielded Wire-wound SMD Inductor with a Metal Composite Core 1.5 μH ±20% Wire-Wound manufactured by Vishay. The manufacturer part number is IHLP2525BDER1R5M01. It allows up to 21.2mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 6.86 x 6.47 x 2.4mm. Shielding Options yes. The product ihlp, is a highly preferred choice for users. Its accurate length is 6.86mm. In addition, the height is 2.4mm. While it carries 7.5a of maximum DC current. The product comes in 6.47mm depth. The core is manufactured from highly durable and reliable metal composite materials. The product has a 1.5 μh inductance value. It provides 5mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. Concerning its package and casing, it is 2225 (5664m).
