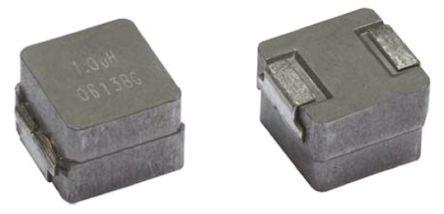

Vishay IHLP2525EZ-01 Series Type 2525 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 10 μH ±20%

IHLP2525EZER100M01 Vishay IHLP2525EZ-01 Series Type 2525 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 10 μH ±20%
Vishay

Product Information

Maximum DC Resistance:
71.3mΩ
Inductor Construction:
Wire-Wound
Dimensions:
6.86 x 6.47 x 5mm
Shielded:
Yes
Series:
IHLP2525EZ-01
Minimum Operating Temperature:
-55°C
Length:
6.86mm
Height:
5mm
Maximum DC Current:
4.5A
Depth:
6.47mm
Core Material:
Metal Composite
Inductance:
10 μH
Maximum Self Resonant Frequency:
1MHz
Board Level Components:
Y
Maximum Operating Temperature:
+125°C
Tolerance:
±20%
Package/Case:
2525
RoHs Compliant
Checking for live stock

This is IHLP2525EZ-01 Series Type 2525 Shielded Wire-wound SMD Inductor with a Metal Composite Core 10 μH ±20% manufactured by Vishay. The manufacturer part number is IHLP2525EZER100M01. It allows up to 71.3mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 6.86 x 6.47 x 5mm. Shielding Options yes. The product ihlp2525ez-01, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -55°c. Its accurate length is 6.86mm. In addition, the height is 5mm. While it carries 4.5a of maximum DC current. The product comes in 6.47mm depth. The core is manufactured from highly durable and reliable metal composite materials. The product has a 10 μh inductance value. It provides 1mhz of maximum self-resonant frequency. It has board level components y . It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. Concerning its package and casing, it is 2525.

pdf icon
IHLP25EZ01 Data Sheet(Technical Reference)
