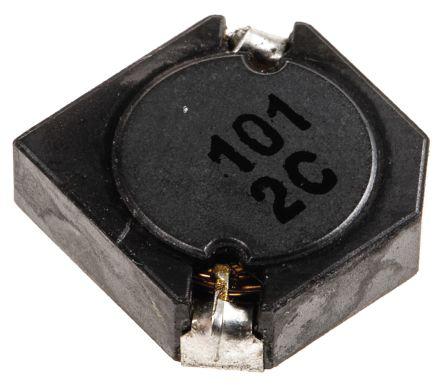

Vishay IHLP-6767GZ-11 Series Type 6767 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 820 nH ±20%

Enrgtech Part No: ET13822642
|
Manufacturer Part No:
IHLP6767GZERR82M11
|
Manufacturer: Vishay

IHLP6767GZERR82M11 Vishay IHLP-6767GZ-11 Series Type 6767 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 820 nH ±20%

Product Information

Maximum DC Resistance:

1.08mΩ

Inductor Construction:

Wire-Wound

Dimensions:

17.15 x 17.15 x 7mm

Shielded:

Yes

Series:

IHLP-6767GZ-11

Length:

17.15mm

Height:

7mm

Maximum DC Current:

56.5A

Depth:

17.15mm

Core Material:

Metal Composite

Inductance:

820 nH

Maximum Self Resonant Frequency:

36MHz

Checking for live stock

This is IHLP-6767GZ-11 Series Type 6767 Shielded Wire-wound SMD Inductor with a Metal Composite Core 820 nH ±20% manufactured by Vishay. The manufacturer part number is IHLP6767GZERR82M11. It allows up to 1.08mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 17.15 x 17.15 x 7mm. Shielding Options yes. The product ihlp-6767gz-11, is a highly preferred choice for users. Its accurate length is 17.15mm. In addition, the height is 7mm. While it carries 56.5a of maximum DC current. The product comes in 17.15mm depth. The core is manufactured from highly durable and reliable metal composite materials. The product has a 820 nh inductance value. It provides 36mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. Concerning its package and casing, it is 6767.

Application Note(Technical Reference)

Power Inductors Capabilities(Technical Reference)

Power Inductors 101(Technical Reference)

Datasheet(Technical Reference)

Did You Know?(Technical Reference)

IHLP Selection Example(Technical Reference)

Power Inductors Infograph(Technical Reference)
