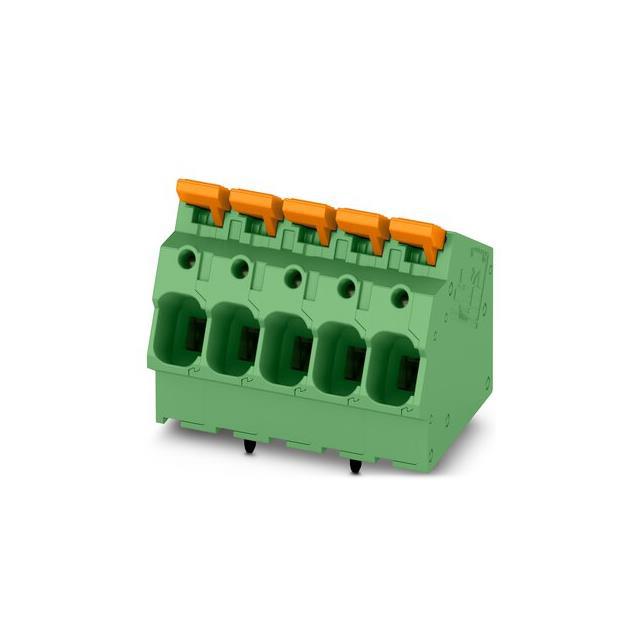

Phoenix Contact 1098178

1098178 Phoenix Contact
1098178
Phoenix Contact

Product Information

Mounting Type:
PCB Mount
Gender:
Female
Pitch:
7.5mm
Termination Method:
PCB
Number of Rows:
1
Series:
5-ZB, LPTA 6/ 5-7
Number of Contacts:
5
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Current:
41 A
Operating Temperature:
-40°C ~ 105°C
Contact Material - Plating:
Copper Alloy - Tin Plated
Mating Orientation:
30° (150°) Angle with Board
Screw Thread:
-
REACH Status:
REACH Unaffected
Wire Termination:
Screwless - Leg Spring, Push-In Spring
Package:
Bulk
Wire Gauge:
8-22 AWG
Clamp Material - Plating:
-
Screw Material - Plating:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Levels:
1
Torque - Screw:
-
standardLeadTime:
13 Weeks
Housing Material:
Polyamide (PA), Nylon
Features:
Lever Actuated
Mounting Type:
Through Hole
Color:
Green
Series:
LPTA
Positions Per Level:
5
Voltage:
1000 V
Pitch:
0.295" (7.50mm)
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 1098178. The product is available in pcb mount configuration. In addition, female is the available "Gender" of the product. Moreover, the product is 7.5mm. It allows pcb termination method. It comes in 1 of rows. The product 5-zb, lpta 6/ 5-7, is a highly preferred choice for users. The product contains 5 contacts. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Features a 41 a current in A. The product has -40°c ~ 105°c operating temperature range. While the contact is copper alloy - tin plated. The mating comes in a 30° (150°) angle with board orientation. In addition, it is reach unaffected. The wire terminals available include screwless - leg spring, push-in spring. It is shipped in bulk package . Moreover, the product has a wire gauge of 8-22 awg. Its typical moisture sensitivity level is 1 (unlimited). The product carries 1 levels. It has a long 13 weeks standard lead time. The product also features robust polyamide (pa), nylon housing material. The splendid features of the product include lever actuated. The product is available in through hole configuration. It has a classic green colour. The product lpta, is a highly preferred choice for users. It has 5 positions each level. It carries a 1000 v of voltage. Moreover, the product is 0.295" (7.50mm). The product is designated with the ear99 code number.

pdf icon
Datasheet - 1098178(Technical Reference)
pdf icon
LPT LPC Reference Guide(Datasheets)
