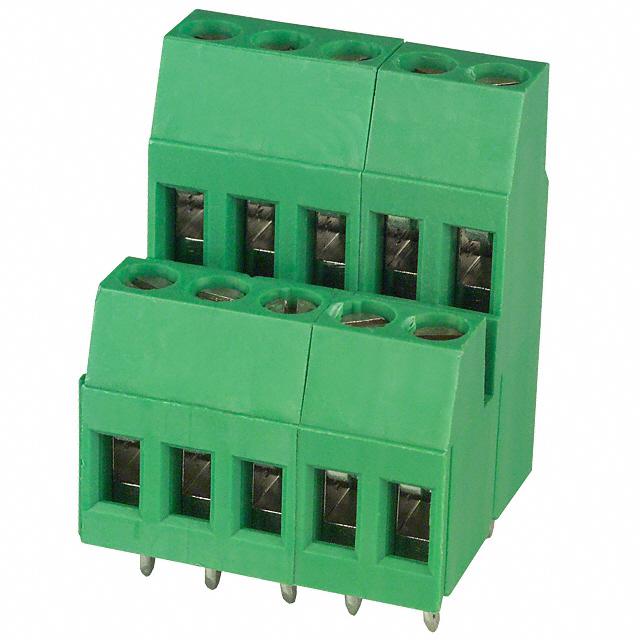

On Shore Technology Inc. ED790/5

ED790-5 On Shore Technology Inc. ED790/5
On Shore Technology Inc.

Product Information

HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Current:
20 A
Operating Temperature:
-30°C ~ 105°C
Contact Material - Plating:
Brass
Mating Orientation:
Horizontal with Board
Screw Thread:
M3
REACH Status:
REACH Unaffected
Wire Termination:
Screw - Rising Cage Clamp
Package:
Bulk
Wire Gauge:
12-30 AWG
Clamp Material - Plating:
Copper
Screw Material - Plating:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Levels:
2
Torque - Screw:
0.5 Nm (4.4 Lb-In)
Housing Material:
Polyamide (PA), Nylon
Features:
-
Mounting Type:
Through Hole
Color:
Green
Series:
ED790
Positions Per Level:
5
Voltage:
300 V
Pitch:
0.197" (5.00mm)
Base Product Number:
ED790
ECCN:
EAR99
Checking for live stock

This is manufactured by On Shore Technology Inc.. The manufacturer part number is ED790/5. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Features a 20 a current in A. The product has -30°c ~ 105°c operating temperature range. While the contact is brass. The mating comes in a horizontal with board orientation. The product has a m3 screw threads. In addition, it is reach unaffected. The wire terminals available include screw - rising cage clamp. It is shipped in bulk package . Moreover, the product has a wire gauge of 12-30 awg. The clamp is designed from robust materials including copper. Its typical moisture sensitivity level is 1 (unlimited). The product carries 2 levels. It carries torque - screw values of 0.5 nm (4.4 lb-in). The product also features robust polyamide (pa), nylon housing material. The product is available in through hole configuration. It has a classic green colour. The product ed790, is a highly preferred choice for users. It has 5 positions each level. It carries a 300 v of voltage. Moreover, the product is 0.197" (5.00mm). Moreover, it corresponds to ed790, a base product number of the product. The product is designated with the ear99 code number.
