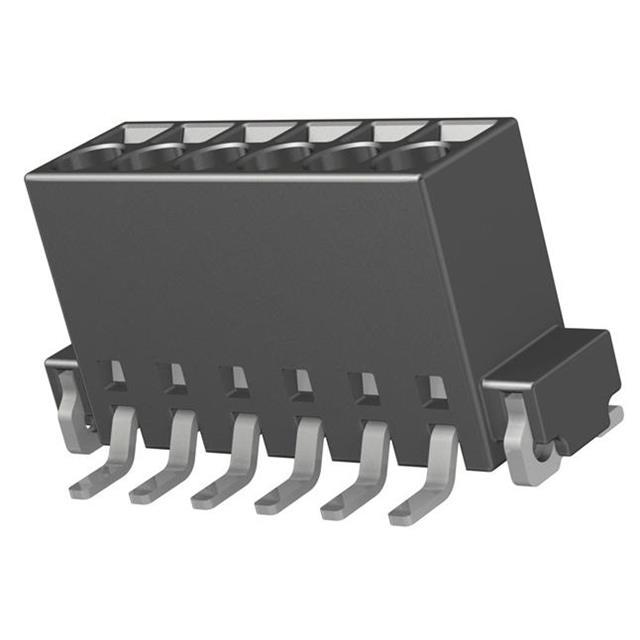

HARTING 14010513101000

14010513101000 HARTING
14010513101000
14010513101000
HARTING

Product Information

Current Rating:
7.5A
Mounting Type:
Surface Mount
Voltage Rating:
160 V
Series:
Har-Flexicon
Colour:
Black
Material:
Glass Fiber Reinforcement, Liquid Crystaline Polymer
Length:
17.39mm
Termination Method:
Screw
Width:
8.8mm
Depth:
10.6mm
Number of Rows:
1
Pitch:
2.54mm
Number of Contacts:
5
Type:
PCB Terminal Block
Body Orientation:
Vertical
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Current:
6 A
Operating Temperature:
-40°C ~ 125°C
Wire Termination:
Screwless - Spring Cage, Tension Clamp
Contact Material - Plating:
Copper Alloy - Tin Plated
Mating Orientation:
Vertical with Board
title:
14010513101000
Screw Thread:
-
REACH Status:
REACH Unaffected
edacadModel:
14010513101000 Models
edacadModelUrl:
/en/models/4835068
Manufacturer:
HARTING
Wire Gauge:
20-26 AWG
Clamp Material - Plating:
-
Screw Material - Plating:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Torque - Screw:
-
standardLeadTime:
8 Weeks
Housing Material:
Liquid Crystal Polymer (LCP), Glass Filled
Number of Levels:
1
Features:
Board Guide, Solder Retention
Mounting Type:
Surface Mount
Color:
Black
Series:
har-flexicon®
Positions Per Level:
5
Packaging:
Tape & Reel (TR)
Voltage:
160 V
Pitch:
0.100" (2.54mm)
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by HARTING. The manufacturer part number is 14010513101000. The product has a current rating of 7.5a. The product is available in surface mount configuration. Moreover, the product has a nominal 160 v voltage rating. The product har-flexicon, is a highly preferred choice for users. It has a decent black colour. The product is made from highly stable and reliable glass fiber reinforcement, liquid crystaline polymer. Its accurate length is 17.39mm. It allows screw termination method. Furthermore, the product is 8.8mm wide. The product comes in 10.6mm depth. It comes in 1 of rows. Moreover, the product is 2.54mm. The product contains 5 contacts. It comes in pcb terminal block configuration. It has vertical body orientation. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Features a 6 a current in A. The product has -40°c ~ 125°c operating temperature range. The wire terminals available include screwless - spring cage, tension clamp. While the contact is copper alloy - tin plated. The mating comes in a vertical with board orientation. In addition, it is reach unaffected. The harting's product offers user-desired applications. Moreover, the product has a wire gauge of 20-26 awg. Its typical moisture sensitivity level is 1 (unlimited). It has a long 8 weeks standard lead time. The product also features robust liquid crystal polymer (lcp), glass filled housing material. The product carries 1 levels. The splendid features of the product include board guide, solder retention. It has a classic black colour. The product har-flexicon®, is a highly preferred choice for users. It has 5 positions each level. In addition, tape & reel (tr) is the available packaging type of the product. It carries a 160 v of voltage. Moreover, the product is 0.100" (2.54mm). The product is designated with the ear99 code number.

pdf icon
har-flexicon 2.54mm Vertical PCB Terminal Block Data Sheet(Technical Reference)
pdf icon
har-flexicon 2.54mm Vertical PCB Terminal Block Drawing(Technical Reference)
pdf icon
14010513101000 Prod Declaration Cert(Datasheets)
pdf icon
14017401601(Datasheets)
pdf icon
14010513101333(Product Drawings)
