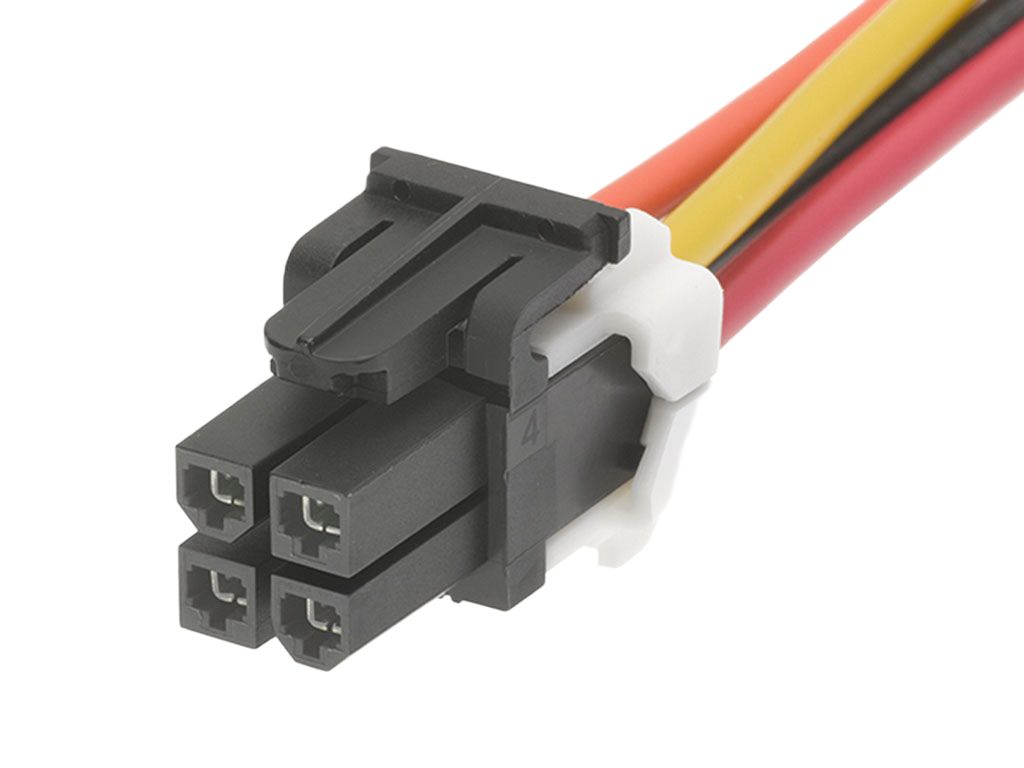

Molex Mini-Fit Jr 45135 Series Number Wire to Board Cable Assembly 2 Row, 4 Way 2 Row 4 Way, 150mm

45135-0401 Molex Mini-Fit Jr 45135 Series Number Wire to Board Cable Assembly 2 Row, 4 Way 2 Row 4 Way, 150mm
Molex

Product Information

Connector 2 Housing Gender:
Female
Current Rating:
9 A
Connector 2 Number of Contacts:
4
Voltage Rating:
600 V ac/dc
Series:
Mini-Fit TPA2
Connector 1 Housing Gender:
Female
Cable Type:
Round
Connector 1 Gender:
Female
Sheath Colour:
Black, Orange, Red, Yellow
Connector 1 Number of Contacts:
4
Contact Plating:
Tin
Pitch:
4.2mm
Connector 2:
Mini-Fit TPA2
Connector 2 Gender:
Female
Operating Temperature Range:
-40 → +105 °C
Connector 1:
Mini-Fit TPA2
Cable Length:
150mm
Series Number:
45135
RoHs Compliant
Checking for live stock

This is Mini-Fit Jr 45135 Series Number Wire to Board Cable Assembly 2 Row 4 Way 2 Row 4 Way 150mm manufactured by Molex. The manufacturer part number is 45135-0401. Additionally, its connector 2 housing is of female gender . The product has a current rating of 9 a. On the other hand, the connector 2 has 4 contacts. Moreover, the product has a nominal 600 v ac/dc voltage rating. The product mini-fit tpa2, is a highly preferred choice for users. On the other hand, the gender of connector 1's housing is female. It is a typical round cable. This connector 1 is a female. The sheath has an adorable black, orange, red, yellow colour. There are 4 contacts on connector 1. The high-quality tin is used as contact plating material. Moreover, the product is 4.2mm. While the Connector 2 is mini-fit tpa2. Connector 2 is a female connector. The product has -40 → +105 °c of operating temperature range. Connector 1 is mini-fit tpa2. Furthermore, the cable has a 150mm of length. It carries [Serial Number] serial number.

pdf icon
Datasheet(Technical Reference)
pdf icon
Molex Mini-Fit Connector Datasheet(Technical Reference)
pdf icon
Technical Drawing - 45135(Technical Reference)
