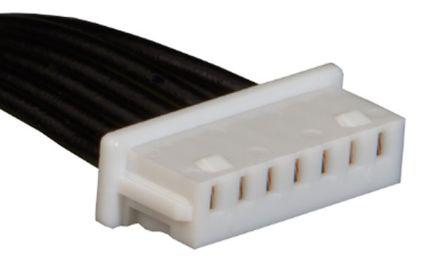

Molex PicoBlade 15134 Series Number Wire to Board Cable Assembly 1 Row, 7 Way 1 Row 7 Way, 100mm

15134-0701 Molex PicoBlade 15134 Series Number Wire to Board Cable Assembly 1 Row, 7 Way 1 Row 7 Way, 100mm
Molex

Product Information

Connector 1 Number of Ways:
7
Current Rating:
1 A
Voltage Rating:
125 V
Series:
PicoBlade
Connector 1 Housing Gender:
Male
Connector 1 Number of Rows:
1
Connector 2 Number of Rows:
1
Sheath Colour:
Black
Connector 1 Terminal/Contact Gender:
Female
Connector 2 Number of Ways:
7
Contact Plating:
Tin
Pitch:
1.25mm
Connector 2 Terminal/Contact Gender:
Female
Operating Temperature Range:
-40 → +85 °C
Connector 2 Housing Gender:
Male
Cable Length:
100mm
Series Number:
15134
RoHs Compliant
Checking for live stock

This is PicoBlade 15134 Series Number Wire to Board Cable Assembly 1 Row 7 Way 1 Row 7 Way 100mm manufactured by Molex. The manufacturer part number is 15134-0701. In addition, it has 7 ways of connector 1 . The product has a current rating of 1 a. Moreover, the product has a nominal 125 v voltage rating. The product picoblade, is a highly preferred choice for users. On the other hand, the gender of connector 1's housing is male. It has 1 connector 1 number of rows . It has 1 connector 2 number of rows . The sheath has an adorable black colour. It has a connector 1 terminal/contact of female gender . Moreover, it has 7 connector 2 number of ways . The high-quality tin is used as contact plating material. Moreover, the product is 1.25mm. The connector 2 terminal/contact is of female gender . The product has -40 → +85 °c of operating temperature range. Additionally, its connector 2 housing is of male gender . Furthermore, the cable has a 100mm of length. It carries [Serial Number] serial number.

pdf icon
PicoBlade Wire to Board Cable Assembly, 7P - Drawing(Technical Reference)
pdf icon
PicoBlade™ Standard Cable Assemblies(Technical Reference)
