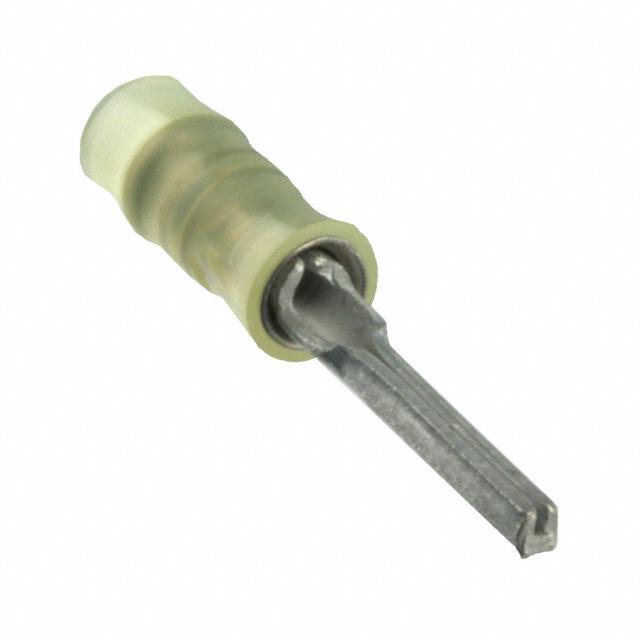

TE Connectivity AMP Connectors 165514-1

165514-1 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

HTSUS:
8536.90.4000
RoHS Status:
RoHS Compliant
Length - Pin:
0.270" (6.86mm)
Material - Insulation:
Polyamide (PA), Nylon
standardLeadTime:
39 Weeks
Length - Overall:
0.716" (18.19mm)
REACH Status:
REACH Unaffected
edacadModel:
165514-1 Models
Insulation Diameter:
0.083" (2.11mm)
edacadModelUrl:
/en/models/1136542
Length - Termination:
-
Package:
Bulk
Wire Gauge:
22-26 AWG (0.1~0.4mm²)
Diameter - Barrel OD:
-
Contact Finish:
Tin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Crimp
Pin Diameter:
Circular - 0.045" (1.14mm) Dia
Diameter - Barrel ID:
-
Features:
Serrated Termination
Color:
Yellow
Series:
PIDG
Insulation:
Insulated
ECCN:
EAR99
Base Product Number:
165514
Contact Material:
Copper
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 165514-1. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs compliant. The pin is 0.270" (6.86mm) long. It is designed from highly reliable polyamide (pa), nylon insulating material. It has a long 39 weeks standard lead time. The product has an integral 0.716" (18.19mm) overall length. In addition, it is reach unaffected. The product's insulation diameter includes 0.083" (2.11mm). It is shipped in bulk package . Moreover, the product has a wire gauge of 22-26 awg (0.1~0.4mm²). Furthermore, the product is galvanized with excellent tin contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features crimp termination style. The pin has circular - 0.045" (1.14mm) dia caliber. The splendid features of the product include serrated termination. It has a classic yellow colour. The product pidg, is a highly preferred choice for users. Insulation Option: insulated. The product is designated with the ear99 code number. Moreover, it corresponds to 165514, a base product number of the product. The product is made from sturdy copper materials.

pdf icon
165514 Marking 03/Feb/2016(PCN Assembly/Origin)
pdf icon
165yyy Drawing 04/Mar/2014(PCN Design/Specification)
pdf icon
165514-1 Drawing 12/Aug/2014(PCN Design/Specification)
pdf icon
165514-1(Datasheets)
