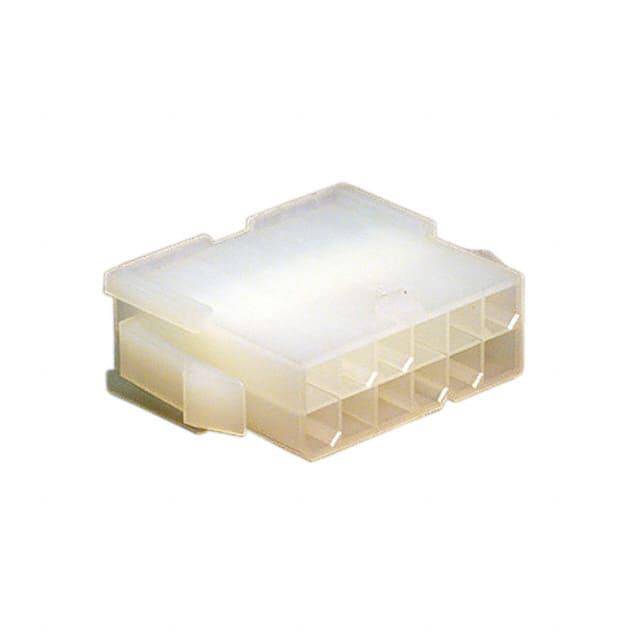

Molex Mini-Fit Jr 5559, 4.2mm Pitch, 12 Way, 2 Row Male Connector Housing

Enrgtech Part No: ET14122587
|
Manufacturer Part No:
39-01-2126
|
Manufacturer: Molex

39-01-2126 Molex Mini-Fit Jr 5559, 4.2mm Pitch, 12 Way, 2 Row Male Connector Housing

Product Information

The Molex Mini-Fit Jr 5559 is a compact and reliable male connector housing with a 4.2mm pitch and a 12-way, 2-row design. Tailored for efficient and secure connections, the 39-01-2126 offers a 12-way, 2-row configuration with a 4.2mm pitch for versatile use in diverse applications.

Mounting Type:

Cable Mount

Gender:

Male

Body Orientation:

Straight

Pitch:

4.2mm

Housing Material:

Nylon

Width:

11.6mm

Number of Rows:

Series:

Mini-Fit Jr

For Use With:

Mini-Fit Jr. Plug

Number of Contacts:

Manufacturer Standard Lead Time:

8 Weeks

Packaging:

Bulk

Checking for live stock

The Molex Mini-Fit Jr 5559, 4.2mm Pitch, 12 Way, 2 Row Male Connector Housing is a popular connector solution used in various industrial and commercial applications. With its high current capacity, multiple positions, and compact design, this connector is excellent for various applications across various industries.

Typical Applications of Molex Mini-Fit Jr 5559, 4.2mm Pitch, 12 Way, 2 Row Male Connector Housing:

Molex Mini-Fit Jr 5559, 4.2mm Pitch, 12 Way, 2 Row Male Connector Housing is used in various applications across various industries. Some of the most common applications include:

Consumer electronics: This connector is also used in various consumer electronics applications, including gaming consoles, computers, and televisions.
Industrial: This connector's compact design and high current capacity make it ideal for use in industrial applications such as automation and control systems.
Automotive: This connector is used in a wide range of automotive applications, including powertrain, lighting, and infotainment systems.

Significant Benefits of Molex Mini-Fit Jr 5559, 4.2mm Pitch, 12 Way, 2 Row Male Connector Housing:

Molex Mini-Fit Jr 5559, 4.2mm Pitch, 12 Way, 2 Row Male Connector Housing offers many benefits, including:

Cost-effective: This connector's compact design and high current capacity make it a cost-effective solution for a wide range of applications.
Easy assembly: The connector is designed for easy assembly, with a simple locking mechanism for quick installation.
High reliability: The positive locking feature and the high-quality materials used in constructing this connector ensure that it is highly reliable and can resist even the harshest operating conditions.

Key Features of Molex Mini-Fit Jr 5559, 4.2mm Pitch, 12 Way, 2 Row Male Connector Housing:

Molex Mini-Fit Jr 5559, 4.2mm Pitch, 12 Way, 2 Row Male Connector Housing is a versatile connector solution with several key features. These include:

Positive locking: The positive locking feature ensures the connector remains securely in place, even in high-vibration environments.
Compact design: This connector's 4.2mm pitch and compact design make it ideal for use in applications where space is limited.
High current capacity: This connector can handle high-power applications with a maximum current rating of 9A per circuit.
Multiple positions: The 12-way, 2-row configuration allows for many situations, making it ideal for complex applications requiring multiple connections.

Datasheet(Technical Reference)

Molex Mini-Fit Connector Datasheet(Technical Reference)

New Mini Fit Connector Crimp Pin Housing Drawing(Technical Reference)

Line Drawing(Technical Reference)

39-01-2126 RoHS Cert of Compliance(Environmental Information)

39-01-2126(Datasheets)

5556-001 Prod Spec(Datasheets)

210 (UK2011-EN PDF)(Catalog Page)

Mini-Fit Jr Color Variation Spec(Other Related Documents)

Moisturizing Nylon Connector Parts(Other Related Documents)

Mini-Fit Jr Test Summary(Other Related Documents)

39-01-2126.pdf(3D Drawings)
