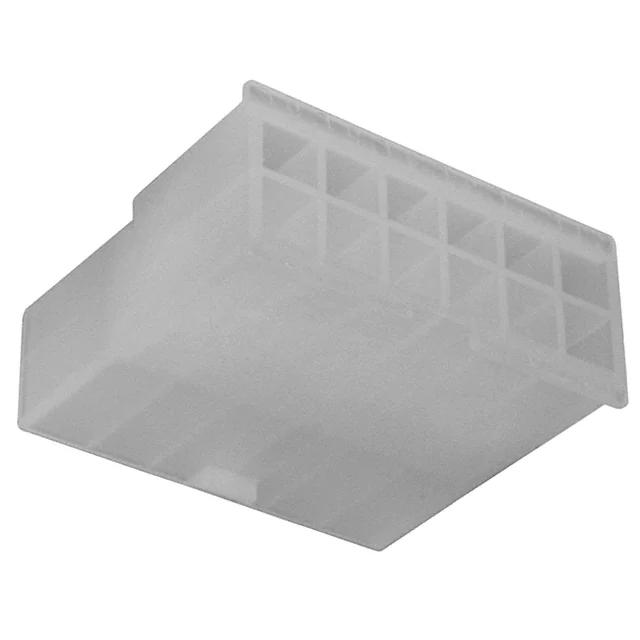

Molex Mini-Fit Jr 5559, 4.2mm Pitch, 12 Way, 2 Row Male Connector Housing

39-01-3123 Molex Mini-Fit Jr 5559, 4.2mm Pitch, 12 Way, 2 Row Male Connector Housing
39-01-3123
Molex

Product Information

Mounting Type:
Cable Mount
Gender:
Male
Body Orientation:
Straight
Pitch:
4.2mm
Housing Material:
Nylon
Length:
26.4mm
Number of Rows:
2
Series:
Mini-Fit Jr
For Use With:
Mini-Fit Jr. Plug
Number of Contacts:
12
Manufacturer Standard Lead Time:
10 Weeks
Packaging:
Bulk
Detailed Description:
12 Position Rectangular Housing Connector Plug Natural 0.165" (4.20mm)
Mounting Type:
Free Hanging (In-Line)
Color:
Natural
Series:
Mini-Fit Jr 5559
Connector Type:
Plug
Number of Positions:
12
Note:
Contacts Not Included
Number of Rows:
2
Fastening Type:
Locking Ramp
Pitch:
0.165" (4.20mm)
Contact Type:
Male Pin
Row Spacing:
0.165" (4.20mm)
Contact Termination:
Crimp
Manufacturer:
Molex
RoHs Compliant
Checking for live stock

This is Mini-Fit Jr 5559 4.2mm Pitch 12 Way 2 Row Male Connector Housing manufactured by Molex. The manufacturer part number is 39-01-3123. The product is available in cable mount configuration. In addition, male is the available "Gender" of the product. It has straight body orientation. Moreover, the product is 4.2mm. The product also features robust nylon housing material. Its accurate length is 26.4mm. It comes in 2 of rows. The product mini-fit jr, is a highly preferred choice for users. The product is highly suitable for mini-fit jr. plug. The product contains 12 contacts. It has typical 10 weeks of manufacturer standard lead time. In addition, bulk is the available packaging type of the product. It features 12 position rectangular housing connector plug natural 0.165" (4.20mm). The product is available in free hanging (in-line) configuration. It has a classic natural colour. The product mini-fit jr 5559, is a highly preferred choice for users. plug Connector type offer robust functionality. The product carries possible position value of 12. Note: contacts not included. Furthermore, locking ramp is the Fastening Type of the product. Moreover, the product is 0.165" (4.20mm). It has typical contact type of male pin. The space between it rows includes 0.165" (4.20mm). It also incorporates crimp contact terminals. The molex's product offers user-desired applications.

pdf icon
Datasheet(Technical Reference)
pdf icon
Molex Mini-Fit Connector Datasheet(Technical Reference)
pdf icon
Line Drawing(Technical Reference)
pdf icon
39-01-3123 RoHS Cert of Compliance(Environmental Information)
pdf icon
5556-001 Prod Spec(Datasheets)
pdf icon
39-01-3yyy(Datasheets)
pdf icon
209 (UK2011-EN PDF)(Catalog Page)
pdf icon
Mini-Fit Jr Color Variation Spec(Other Related Documents)
pdf icon
Moisturizing Nylon Connector Parts(Other Related Documents)
pdf icon
Mini-Fit Jr Test Summary(Other Related Documents)
pdf icon
39-01-3123.pdf(3D Drawings)
