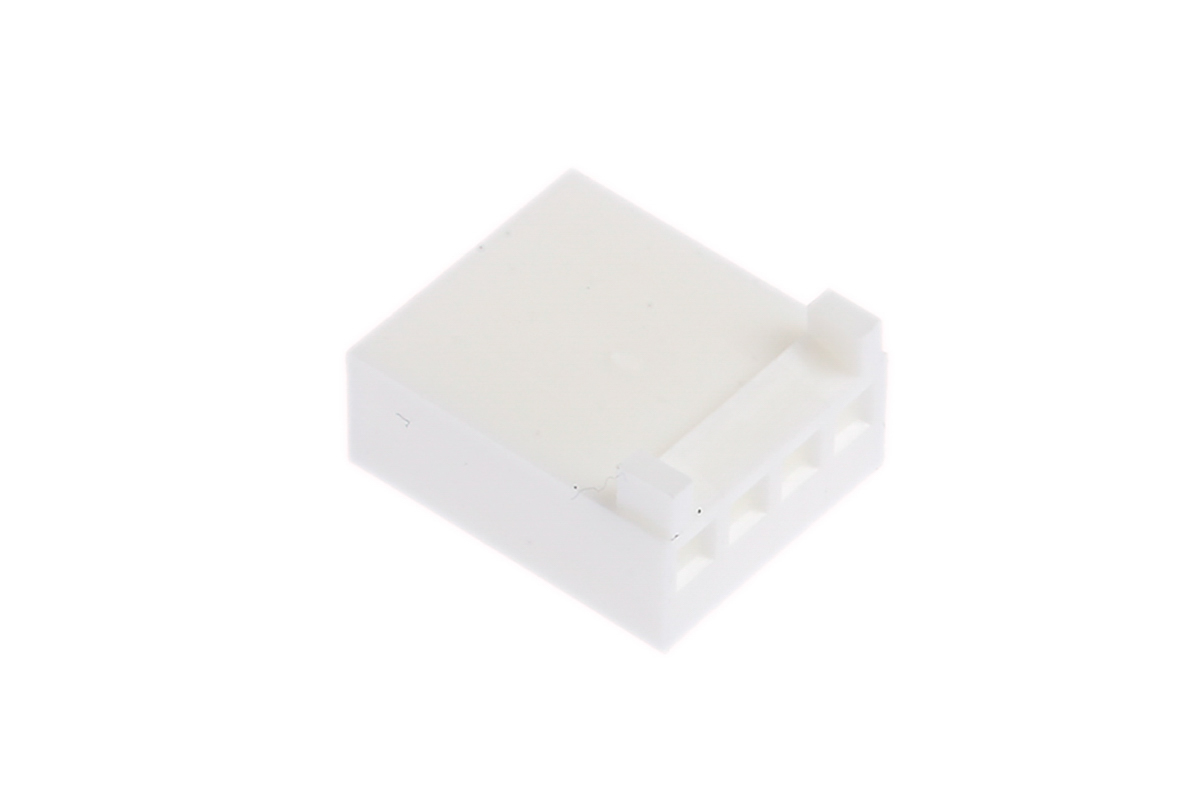

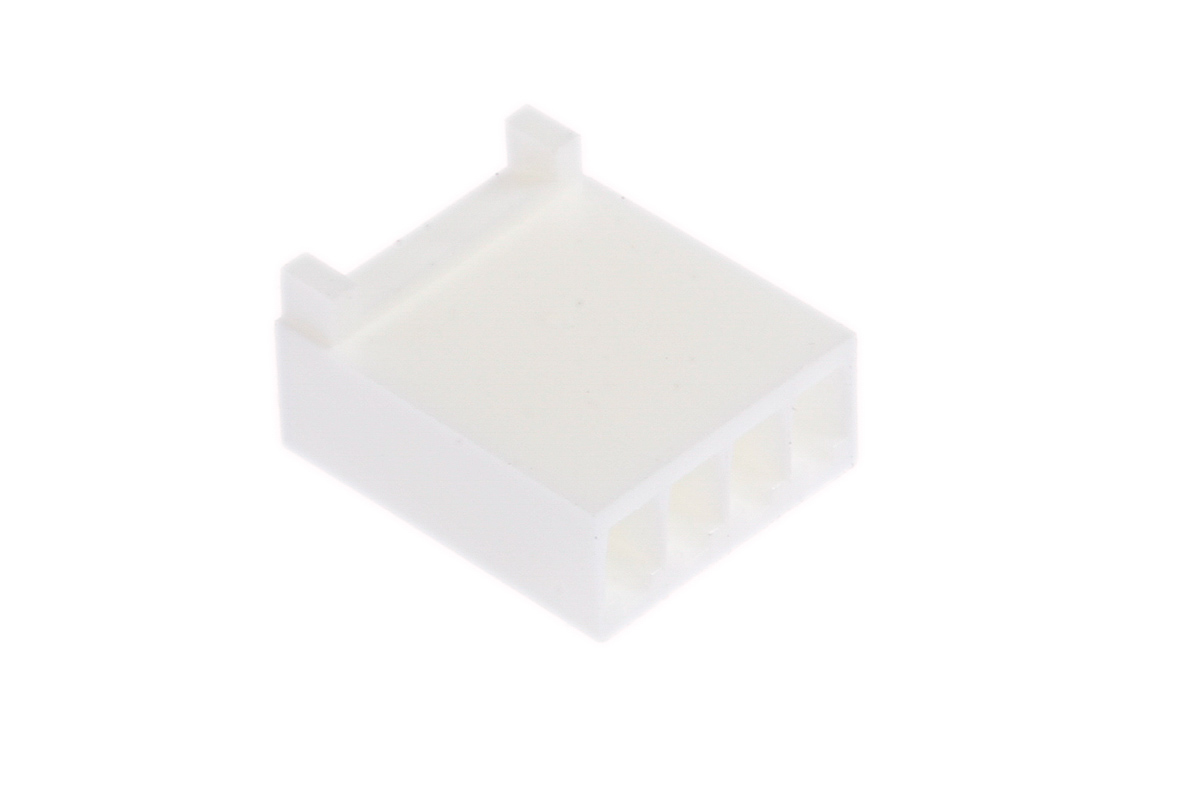

Molex 22-01-3047, 2.54mm Pitch, 4 Way, 1 Row Female Connector Housing

22-01-3047 Molex , 2.54mm Pitch, 4 Way, 1 Row Female Connector Housing
Molex

Product Information

Mounting Type:
Cable Mount
Gender:
Female
Pitch:
2.5mm
Housing Material:
Polyamide
Width:
12.7mm
Length:
10.72mm
Number of Rows:
1
Series:
KK 254
For Use With:
2759 KK Crimp Terminals, 41572 KK Crimp Terminals, 4809 KK Crimp Terminals, 6459 KK Crimp Terminals, 8088 KK Crimp Terminals
Number of Contacts:
4
RoHs Compliant
Checking for live stock

The Molex 22-01-3047 is a crucial component in electronic and electrical systems, offering a reliable means of connection. This specific model features a 2.54mm pitch and is designed as a 4-way, 1-row female connector housing, making it suitable for various applications in electronics. Its standard pitch, compact design, and reliable construction make it a preferred choice for ensuring effective and stable connections in different electronic systems.

The Molex 22-01-3047, 2.54mm Pitch, 4 Way, 1 Row Female Connector Housing: Application Potential

The Molex 22-01-3047 connector housing is an integral component in a wide array of electronic applications, including:

  • Consumer Electronics: Widely used in devices like computers, audio systems, and home appliances where reliable connections are essential.
  • Automotive Electronics: Suitable for use in automotive electrical systems, where stable and durable connections are critical for safety and functionality.
  • Industrial Control Systems: Its reliability and ease of use make it ideal for industrial control applications, where consistent performance is a necessity.
  • Telecommunications Equipment: Utilised in telecommunications systems for secure and stable signal transmission.
  • DIY and Hobbyist Projects: Due to its easy installation and versatility, it is also a popular choice among hobbyists and DIY enthusiasts working on electronic projects.

Salient Features and Benefits of the Female Connector Housing

  • The standard 2.54mm pitch allows for compatibility with common electronic components.
  • This layout provides a compact yet effective connection solution suitable for a range of applications where space is limited.
  • Made with high-quality materials, the Molex 22-01-3047 ensures durability and long-term reliability, reducing the need for frequent replacements.
  • The design of this connector housing allows for easy and quick installation, making it user-friendly for technicians and hobbyists alike.
  • It provides secure and stable connections, minimising the risk of disconnection or signal loss, crucial for maintaining the integrity of electronic circuits.

pdf icon
Datasheet 22/01/3047(Technical Reference)
